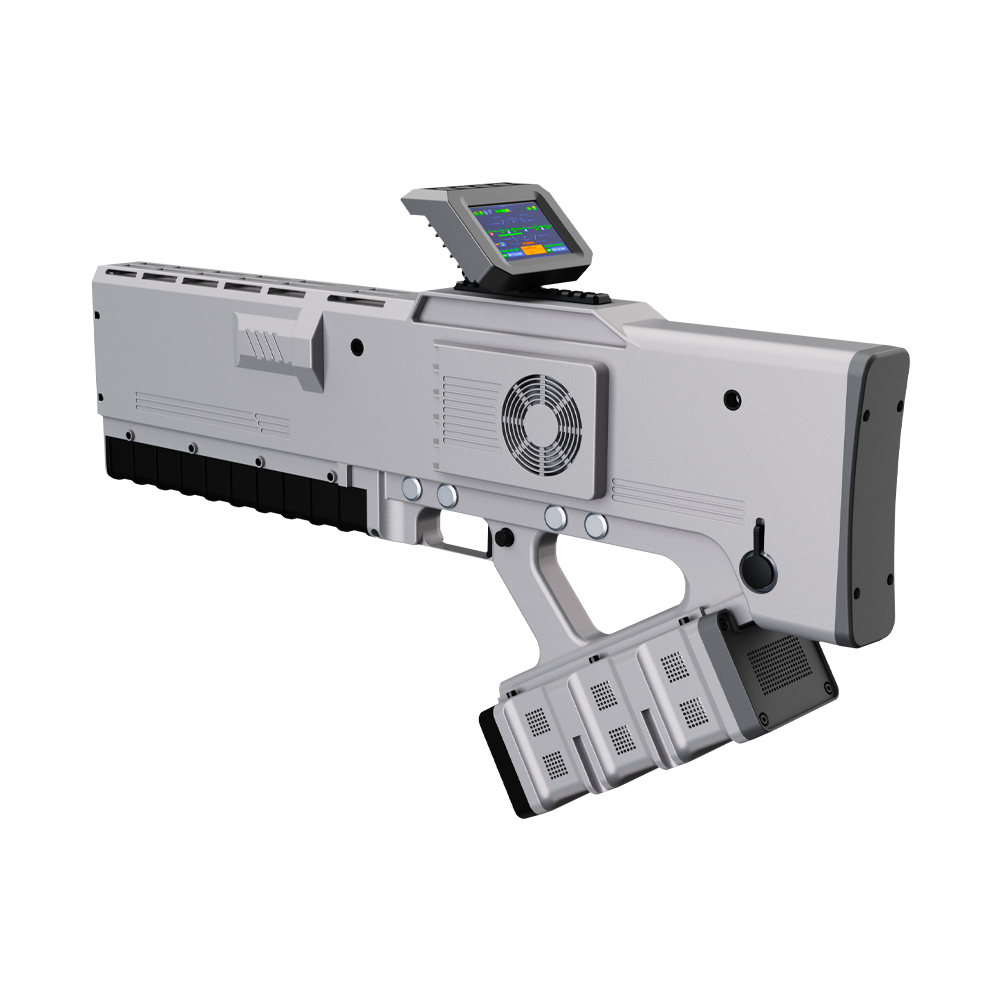

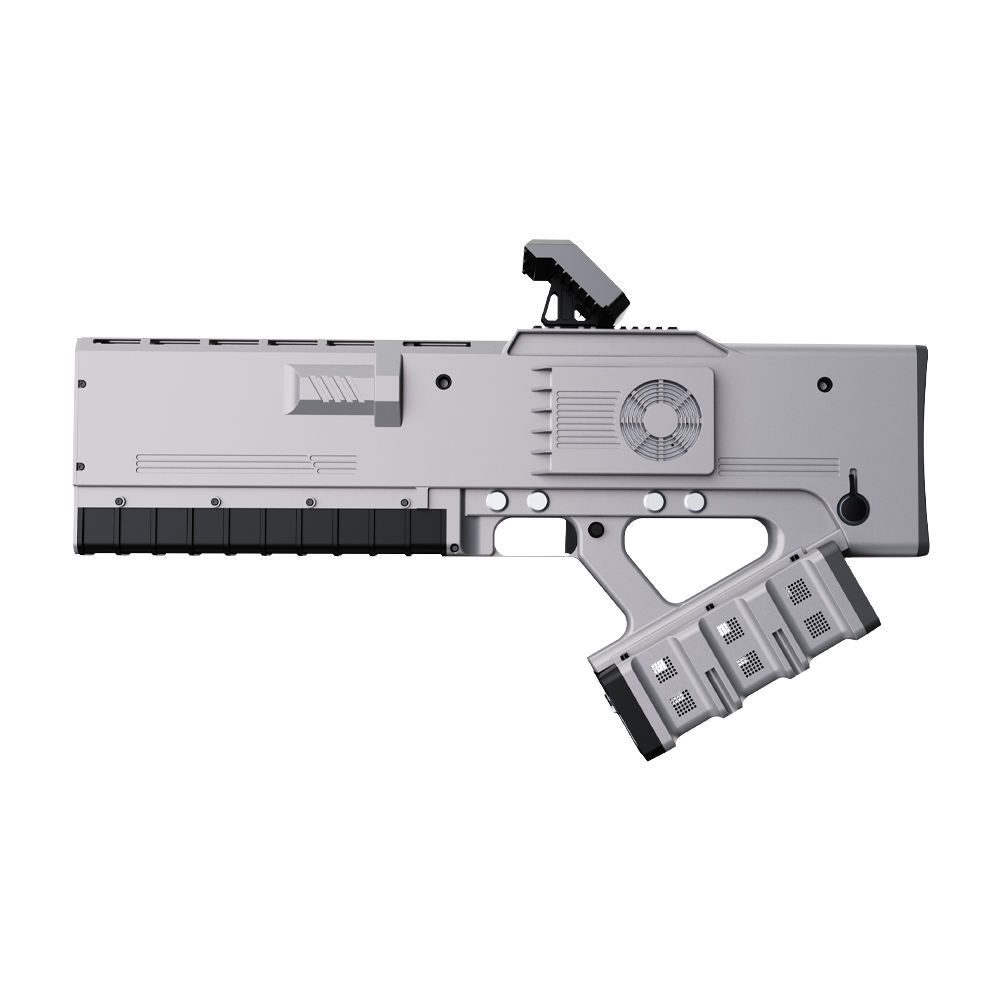

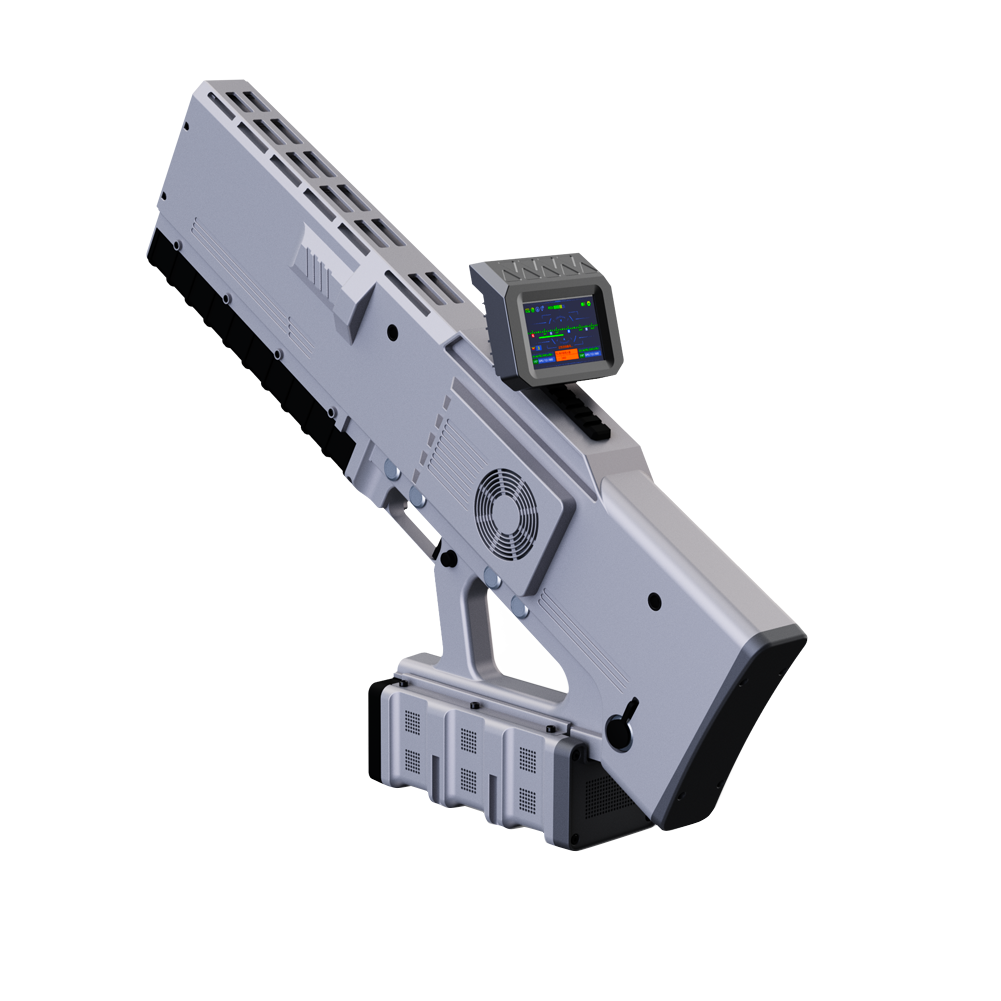

HDJ1.0
Adopting an integrated design concept, the HDJ 1.0 system combines detection, early warning, target direction finding, and jamming functions. It can be used either as a standalone unit or as part of a network of multiple units, with the status of the equipment and targets displayed visually on the control terminal. It is suitable for individual duty scenarios in public safety, correctional facilities, airports, stadiums, water conservancy and hydropower, and other industries.
Featured
High Integration
Integrates detection and early warning, direction finding and positioning, and jamming functions. This single device features its own independent system and closed-loop control for seamless operation.
Rapid Detection
Features 360° omnidirectional detection. The device will issue an immediate sound and light alarm upon detecting a target.
Precise Identification
Precisely identifies drones of the same brand, model, and operating frequency.
Direction Finding
Quickly determines the direction of drone intrusion and activates the jamming function to implement over-the-horizon directional defense.
Full-Covered Library
Covers more than 98% drones on the market, including DJI, Autel, JOUVA, Hubsan, 3DR, Parrot, Prox Dynamic, APEX, DIY drones.
Specifications
| Detection Bands | 2.4GHz, 5.8GHz |
| Detection Distance | 0~3km (Differences exist due to different environments and drone types) |
| Jamming Bands
(Customizable) |
900MHz, 1.5GHz, 2.4GHz, 5.8GHz |
| Jamming Distance | 0~1km (Differences exist due to different environments and drone types) |
| Power Supply | Built-in lithium battery can be replaced
Support charging while using |
| Power Consumption | ≤50W (Detection)
≤230W (Jamming) |
| Continuous Runtime | ≥8h (Detection)
≥45min (Jamming) |
| Dimensions | 731.8mm × 443.5mm × 112mm (±2mm, Battery included) |
| Weight | 6kg (Battery included) |
| Operating Temperature | -25°C to 65°C |
1. Product Profile: HDJ 1.0
The HDJ 1.0 system is built on an integrated design concept, seamlessly combining multiple defense layers into a single solution. It provides a comprehensive suite of capabilities, including:
-
Detection & Early Warning: Proactive identification of incoming threats.
-
Direction Finding: Precise tracking of target bearings.
-
Jamming: Active neutralization of unauthorized drones.
-
Display & Control Networking: Visualized management of equipment status and targets on a central control terminal.
Deployment Flexibility
The system is engineered for versatility:
-
Standalone Operation: Ideal for individual duty and rapid response.
-
Networked Configuration: Supports multi-unit networking for broader coverage and collaborative defense.
Industry Applications
HDJ 1.0 is highly suitable for individual-led security in sectors such as:
-
Public Safety & Correctional Facilities
-
Aviation (Airports)
-
Sports Venues (Stadiums)
-
Critical Infrastructure (Water Conservancy & Hydropower)
2. Key Features
-
High Integration: Combines detection, early warning, direction finding, positioning, and jamming functions into a single device. The system features its own independent operating system and closed-loop control for seamless management.
-
Rapid Detection: Offers 360° omnidirectional detection. Upon identifying a target, the device immediately triggers integrated sound and light alarms.
-
Precise Identification: Capable of precisely identifying drones by brand, model, and specific operating frequency.
-
Direction Finding: Rapidly determines the direction of drone intrusion, allowing the operator to activate the jamming function for over-the-horizon directional defense.
-
Full-Covered Library: Supports over 98% of drones currently on the market, including:
-
Major Brands: DJI, Autel, JOUVA, Hubsan, 3DR, Parrot, Prox Dynamic, and APEX.
-
Custom Units: Various DIY and specialty drones.
-
