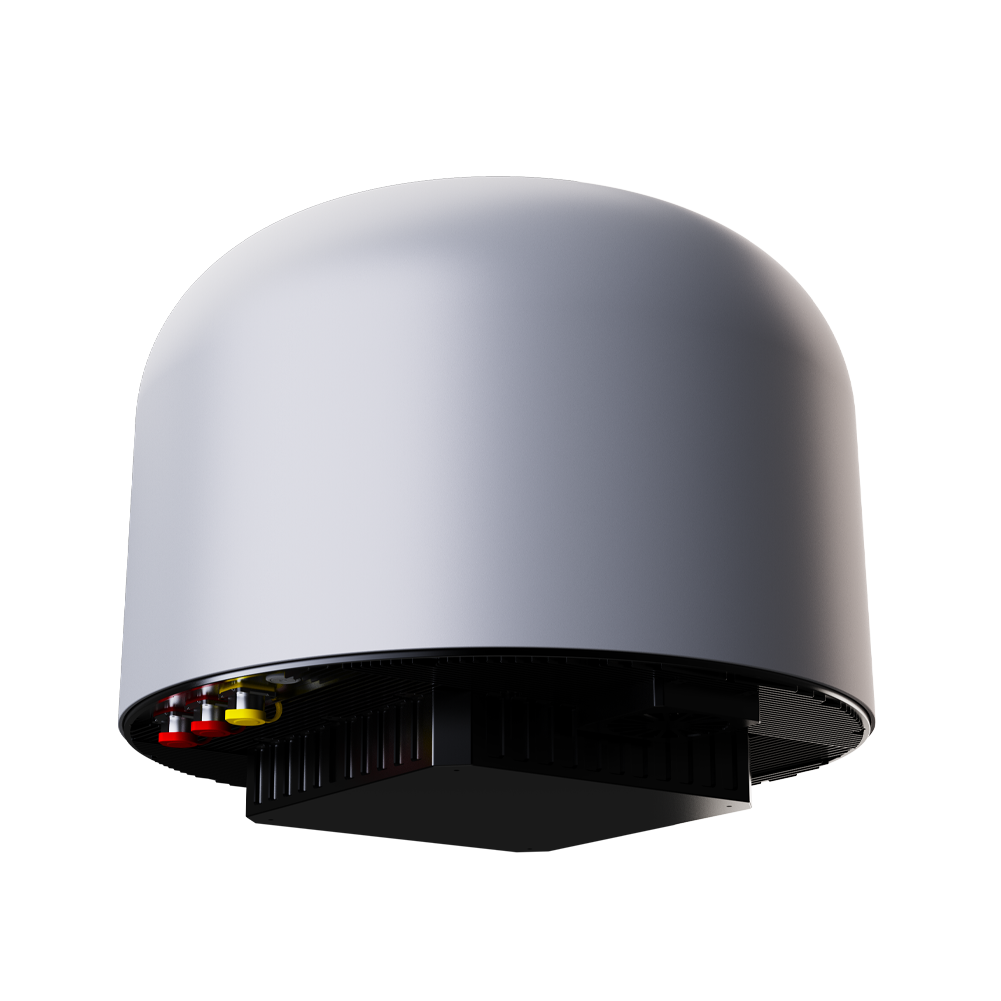

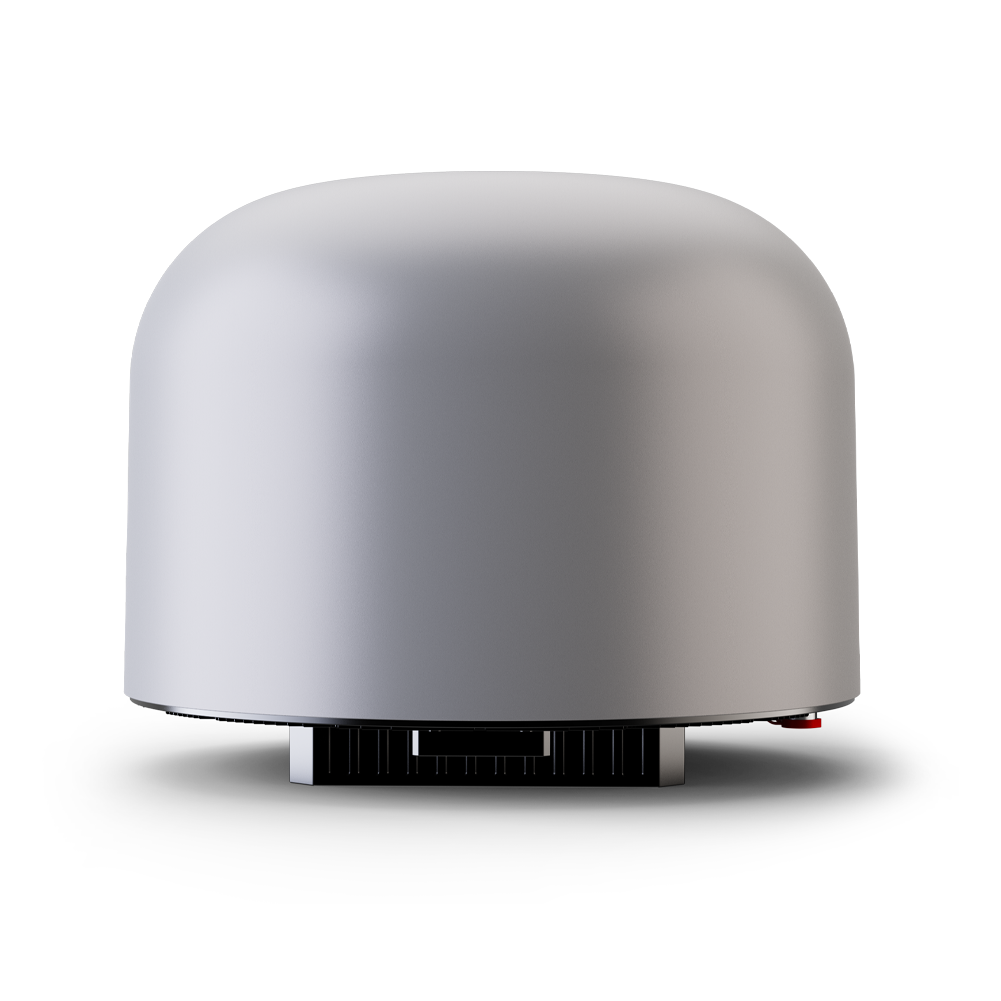

DF5 MAX
DF5 Max is a stationary, high-precision detection and identification system that uses a multi-functional, integrated design and supports multi-band direction finding.
The equipment covers FPV drones and DIY drones. It can also achieve single-station resolving positioning, multi-site network-fusion positioning across the entire model coverage, full-dimensional positioning, and target drone tracking. This stationary equipment widely applies to airports, high-speed railway stations, electric power systems, petroleum, and petrochemicals.
Featured
Precise Identification
Based on CRPC technology, it accurately identifies different drones of the same brand, model, frequency, and drone ID.
Full Frequency Direction Finding
Adopting multiple array direction finding antennas and equipped with AI computing units, it can stably output drone azimuth information in complex electromagnetic environments.
Full Drone Mode Finding
The device supports precise direction finding for common drone models, FPV crossovers, DIY assembly machines, etc., in the market.
Highly Integrated
No need to assemble with other working units, friendly appearance, and convenient installation.
Strong Anti-interference
The device can accurately determine the intrusion direction of the drone, achieve a second-level refresh of location information, and quickly and effectively indicate the target.
Specifications
| Performance Indicators | Detection Bands | 400MHz~6GHz |
| Detection Distance | 0~5km (Differences exist due to different environments and drone types) | |
| Direction Finding Bands | 400MHz~6GHz | |
| Direction Finding Distance | 0~3km (Target: DJI Mavic3, Environment: Good electromagnetic environment without obvious obstructions) | |
| Direction Finding Accuracy | ≤10° (RMS) | |
| Detection Quantity | ≥35 Drones (Simultaneous) | |
| Physical Indicators | Power Supply | AC110~240V |
| Power Consumption | ≤150W (Normal Temperature) | |
| Dimensions | φ590mm × 535mm (±2mm) | |
| Weight | 18kg | |
| IP Rating | IP66 |
Product Profile: DF5 Max
The DF5 Max is a stationary, high-precision detection and identification system engineered for comprehensive airspace security. Utilizing a multi-functional, integrated design, the system supports multi-band direction finding to secure critical infrastructure against aerial threats.
Key Capabilities
-
Broad Spectrum Coverage: Specifically designed to detect and identify FPV drones and DIY drones.
-
Advanced Positioning: * Single-station resolving positioning.
-
Multi-site network-fusion positioning (entire model coverage).
-
Full-dimensional positioning and real-time target tracking.
-
-
Integrated Design: Multi-functional architecture optimized for stationary, long-term deployment.
Industry Applications
The DF5 Max is built for high-stakes environments requiring constant vigilance:
-
Transportation Hubs: Airports and high-speed railway stations.
-
Energy Infrastructure: Electric power systems, petroleum refineries, and petrochemical plants.
