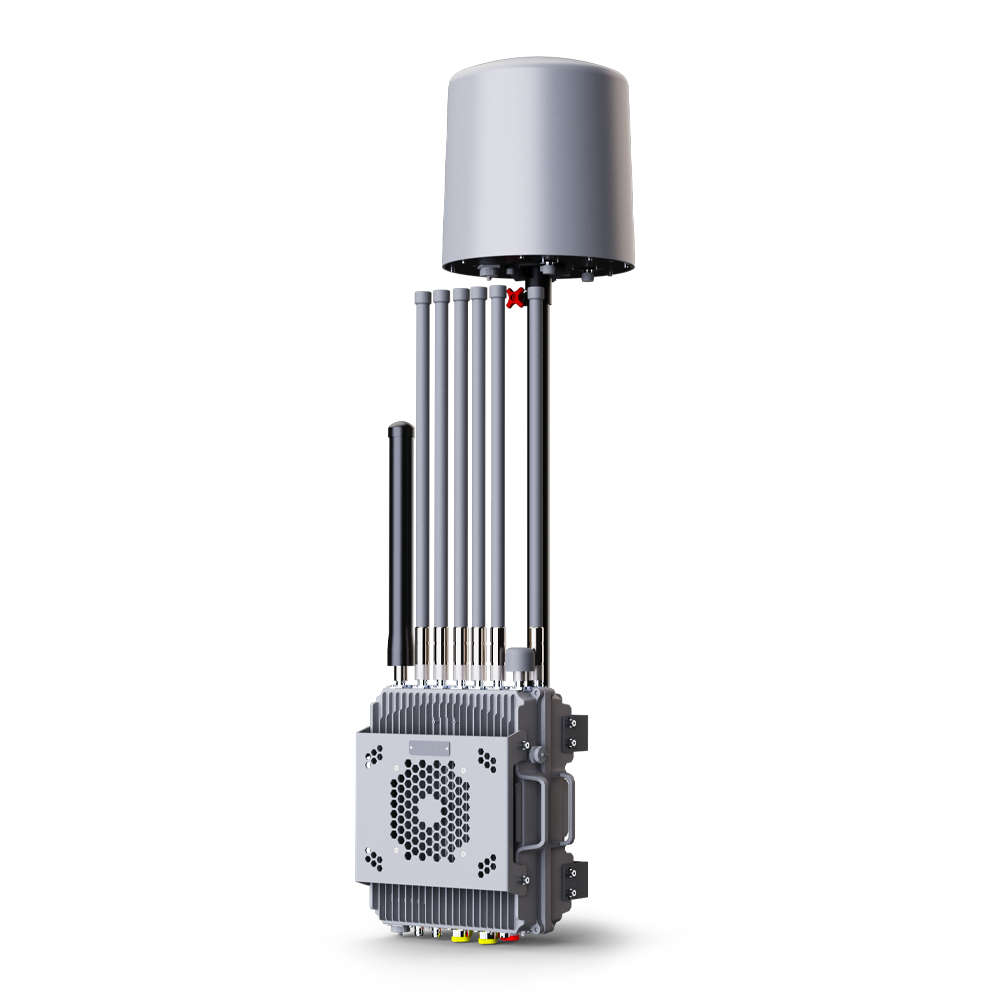

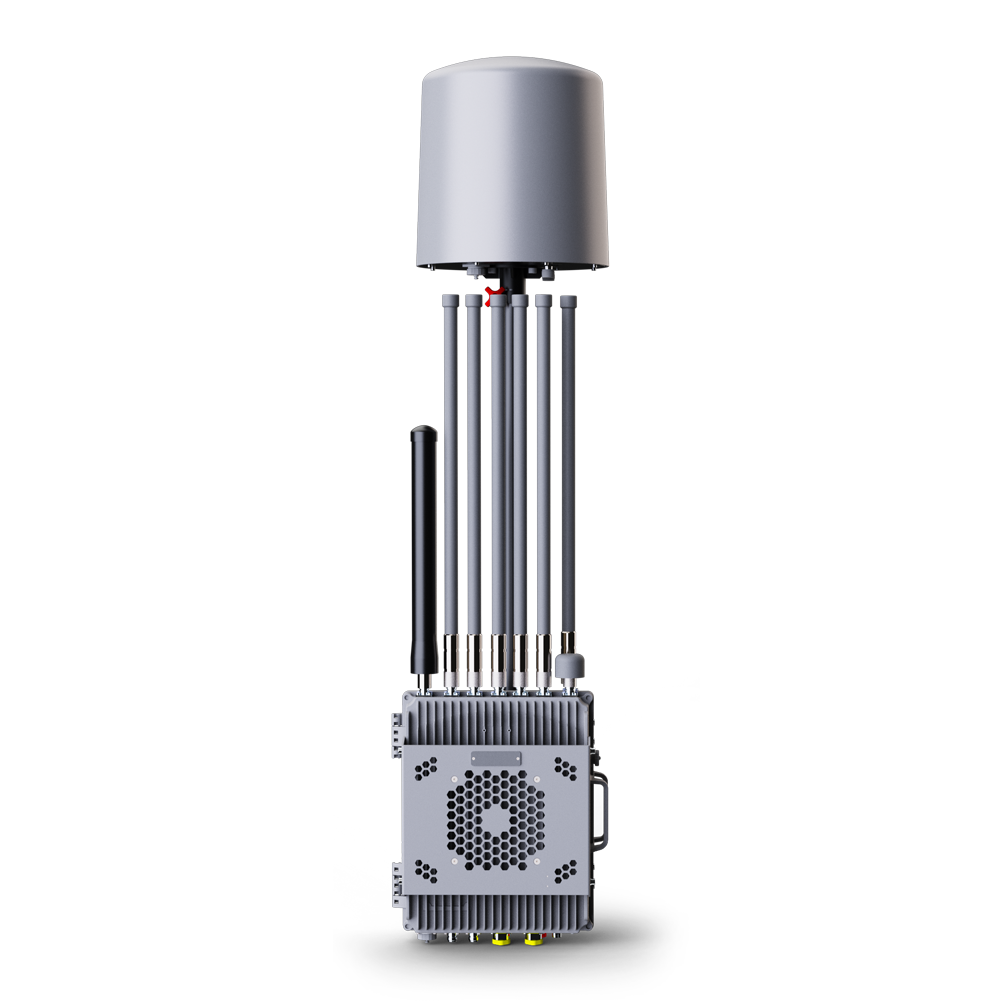

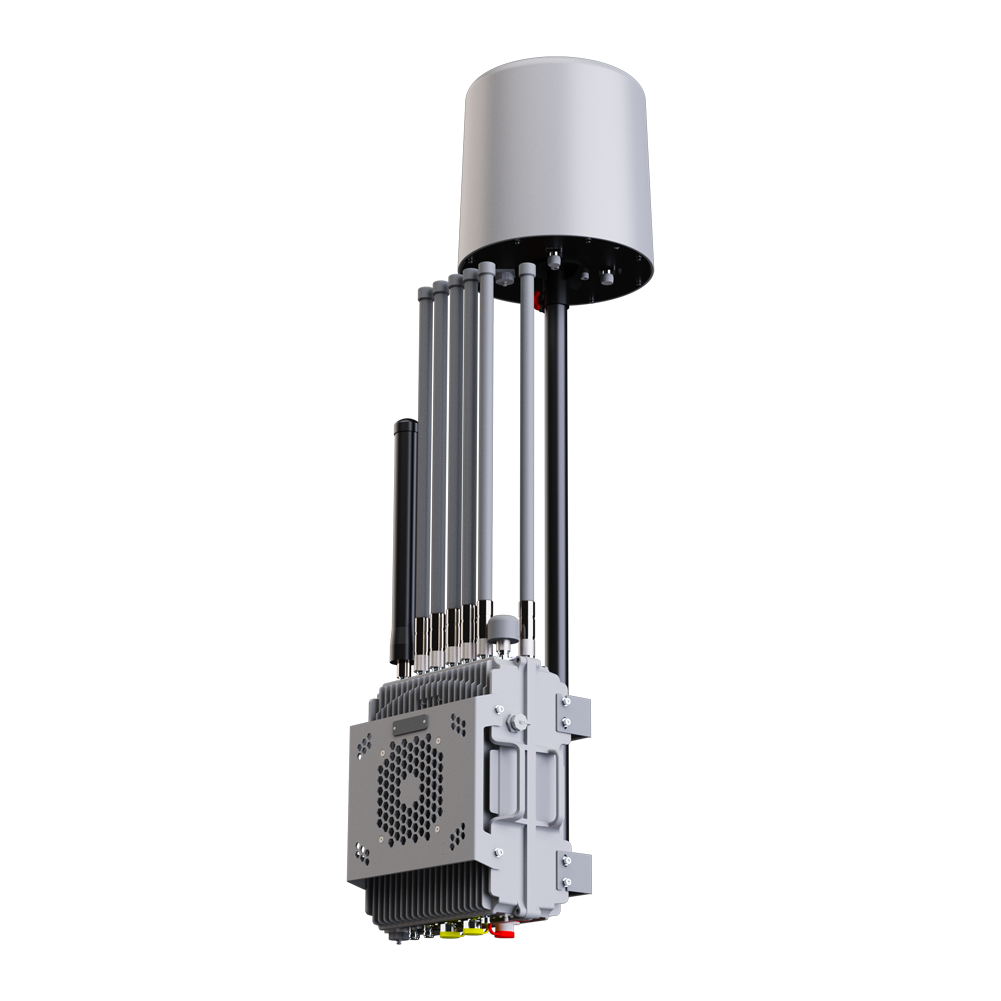

DS Series
The DS Series is a stationary detection and spoofing system. Equipped with a professional-level waterproof and dustproof design, it can operate reliably and continuously in outdoor harsh environments, and can be widely applied to area installation and deployment.
Full-band Detection
Detects 30MHz–6GHz ultra-wideband signals passively, without any electromagnetic radiation.
Precise Identification
Precisely identifies different drones of the same brand and model from a long distance, and successfully identifies the unique electronic fingerprint of drones.
Spoofing and Defense
Upon detecting an unauthorized drone, the system actively emits signals to carry out spoofing, forced landing, driving away, and more to protect the safety of the designated area.
Autonomous Function
Features a one-click switch to autonomous mode, providing automatic defense against drone intrusions 24/7.
Intelligent Spoofing
After detecting an intruding drone, the device proactively launches signals to implement deception, forced landing, and expulsion, ensuring the total security of the defense zone.
Unattended Function
One-click switch to unattended,automatically defend against drone intrusion for 7/24 hours.
Specifications
| Performance Indicators | Detection Bands | 30MHz~6GHz |
| Detection Distance | 0~8km (Differences exist due to different environments and drone types) | |
| Detection Range | 360° Full Airspace | |
| Spoofing Effect | Forced landing (no-fly zone setting)
Eviction (straight line eviction, circular eviction, spiral eviction) |
|
| Spoofing Signal | GPS-L1, GLONASS-L1, BDS-B1 | |
| Spoofing Distance
(Customizable) |
0~1km | |
| Physical Indicators | Power Supply | AC 110~240V |
| Power Consumption | ≤100W | |
| Dimensions | 399mm × 335mm × 224mm | |
| Weight | 13kg (Without antennas) | |
| Operating Temperature | -25°C to +60°C | |
| IP Rating | IP66 |
1. Product Profile
This integrated stationary detection and spoofing system boasts comprehensive functionality and exceptional performance. With a professional-level waterproof and dustproof design, it can operate reliably and continuously in harsh outdoor environments. It is ideal for use in:
-
Public Safety & Correctional Facilities
-
Aviation (Airports) & Sports Venues (Stadiums)
-
Critical Infrastructure (Water Conservancy and Hydropower Projects)
-
Other Industrial Applications
2. Key Features
-
Full-band Detection: Detects 30MHz–6GHz ultra-wideband signals passively, without any electromagnetic radiation.
-
Precise Identification: Precisely identifies different drones of the same brand and model from a long distance, and successfully identifies the unique electronic fingerprint of drones.
-
Spoofing and Defense: After detecting an unauthorized drone, the system actively emits signals to carry out spoofing, forced landing, driving away, and more to protect the safety of the area.
-
Autonomous Function: Features a one-click switch to autonomous mode, providing automatic defense against drone intrusions 24/7.
-
Intelligent Spoofing: Upon detecting an intruding drone, the device actively launches signals to implement deception, forced landing, and expulsion, ensuring the total security of the defense zone.
