R5

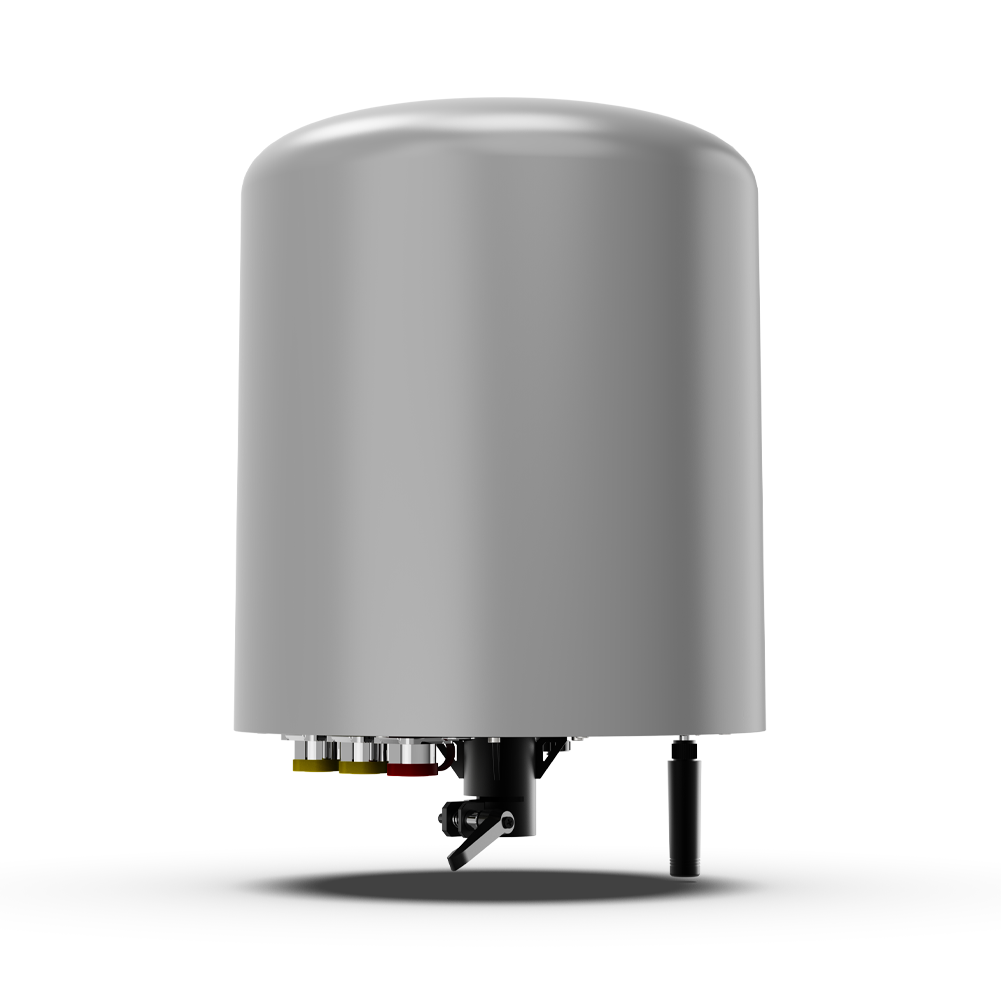

The R5 is a stationary drone Remote ID reception device designed to receive, decode, and monitor broadcast remote identification information from drones in real time. By capturing RID messages, it extracts critical data such as the drone’s serial number, brand and model, latitude and longitude, altitude, speed, and the pilot’s (remote controller’s) position coordinates. This enables precise positioning and trajectory tracking of both the drone and
its pilot. Equipped with a built-in multi-array high-gain receiving antenna, it is suitable for multi-scenario low-altitude protection in urban, suburban, and remote areas.
Protocol Compatibility
Support the three major international standards:,American standard: ASTM F3411-22a, European standard: ASD-STANPrEN4709-002.
Target Identification Capability
Receives data such as drone SN code, pilot position, speed, and heading direction in real time.
High Integration
Integrated antenna design, core control module and antenna integration.
Multi-sided Array Directional Antenna Design
Adopts a multi-sided high-gain directional antenna design, achieving 360° detection coverage.
Target Identification
Displays real-time flight trajectories, generates electronic fences, and can integrate with jamming devices for jamming countermeasure.
Network Coordination
Allows large-scale deployment within designated areas to meet monitoring and protection needs across wide regions.
Specifications
| Performance Indicators | Working Principle | Remote ID message parsing |
| Detection Bands | Wi-Fi 2.4GHz/5.8GHz | |
| Detection Distance | Urban: 0~1km
Urban Suburban: 0~2km Suburban: 0~8km |
|
| Protocol Compatibility | China GB42590-2023
ASTM F3411-22a EU ASD-STAN PrEN4709-002 |
|
| Communication Interface | RJ45×2, SIM×1 | |
| Maintenance Management | Support networking, OTA upgrade, and configuration management | |
| User Service | Software platform, open API, and supports access to third-party platforms | |
| Physical Indicators | Power Supply | AC110~240V |
| Power Consumption | <15W | |
| Dimensions | φ307mm × 420mm (±2mm) | |
| Operating Temperature | -40°C to +65°C | |
| IP Rating | IP66 |
1.Product Profile: R5 Fixed Remote ID Receiver
The R5 is a high-performance, fixed-site UAV Remote ID receiver engineered for extensive airspace monitoring. Designed for 24/7 autonomous operation, the R5 features a ruggedized outdoor enclosure and an integrated antenna system, allowing it to withstand extreme weather conditions including high winds, direct sun, and heavy precipitation.
By leveraging multi-point network deployment, the R5 can be scaled through centralized servers to create a seamless, large-area monitoring grid. It is an ideal solution for modern IoT applications in agriculture, environmental protection, and “Smart City” infrastructure.
Technical Performance
-
Detection Radius: Up to 8 km in optimized environments.
-
Antenna System: High-gain, multi-sided array for 360° coverage.
-
Deployment: Flexible multi-point networking via server integration.
2. Key Features
Global Protocol Compatibility
The R5 is designed for cross-border compliance, supporting the three major international Remote ID standards:
-
China: GB42590-2023
-
USA: ASTM F3411-22a
-
Europe: ASD-STAN PrEN4709-002
Advanced Monitoring & Defense
-
Comprehensive Data Extraction: Real-time capture of Drone SN code, pilot (GCS) position, flight speed, and heading.
-
Visual Intelligence: Displays real-time flight trajectories and supports the creation of Electronic Fences (Geofencing).
-
Countermeasure Ready: Built-in capability to integrate with external jamming devices for automated intrusion response.
Industrial-Grade Reliability
-
Integrated Architecture: The core control module and multi-directional antennas are fused into a single unit for simplified installation.
-
Autonomous Operation: Capable of 7/24 automatic detection without the need for manual oversight.
-
Wide-Area Coordination: Supports large-scale “mesh” style deployment to protect entire municipalities or critical industrial zones.
