H3 pro

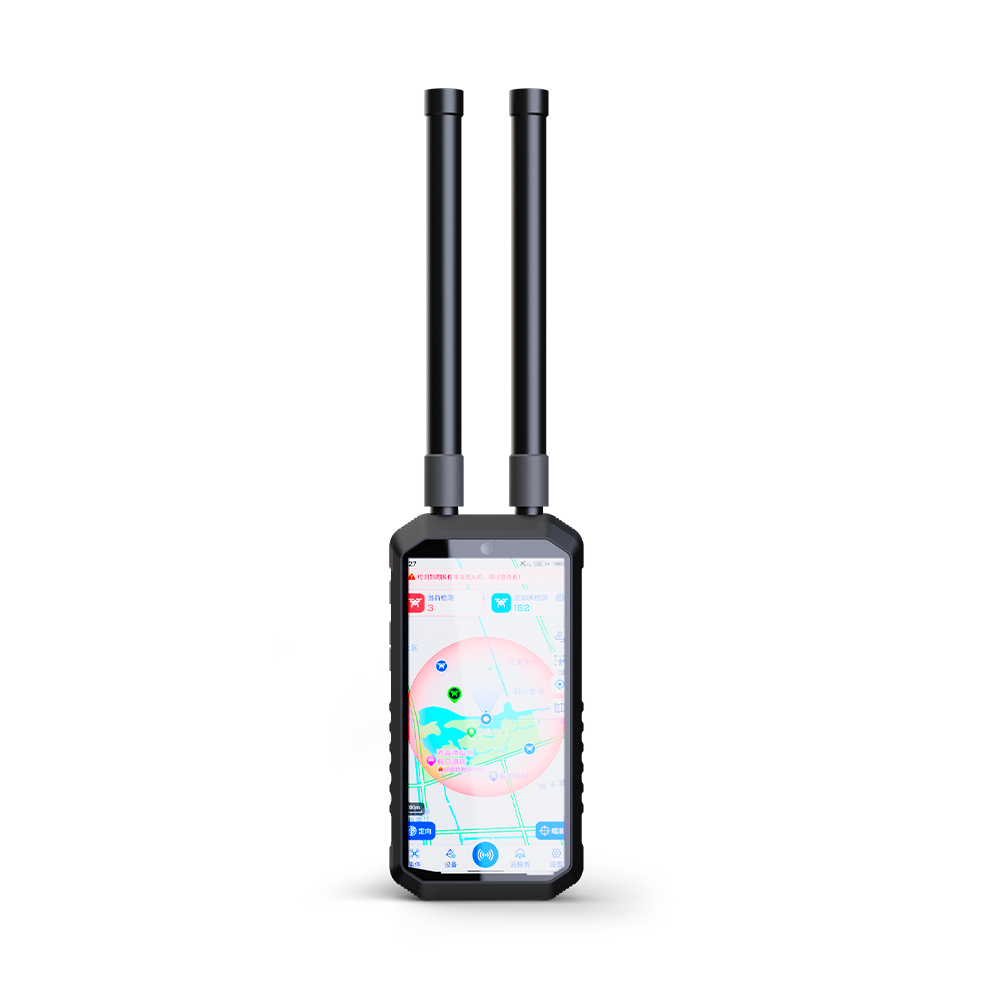

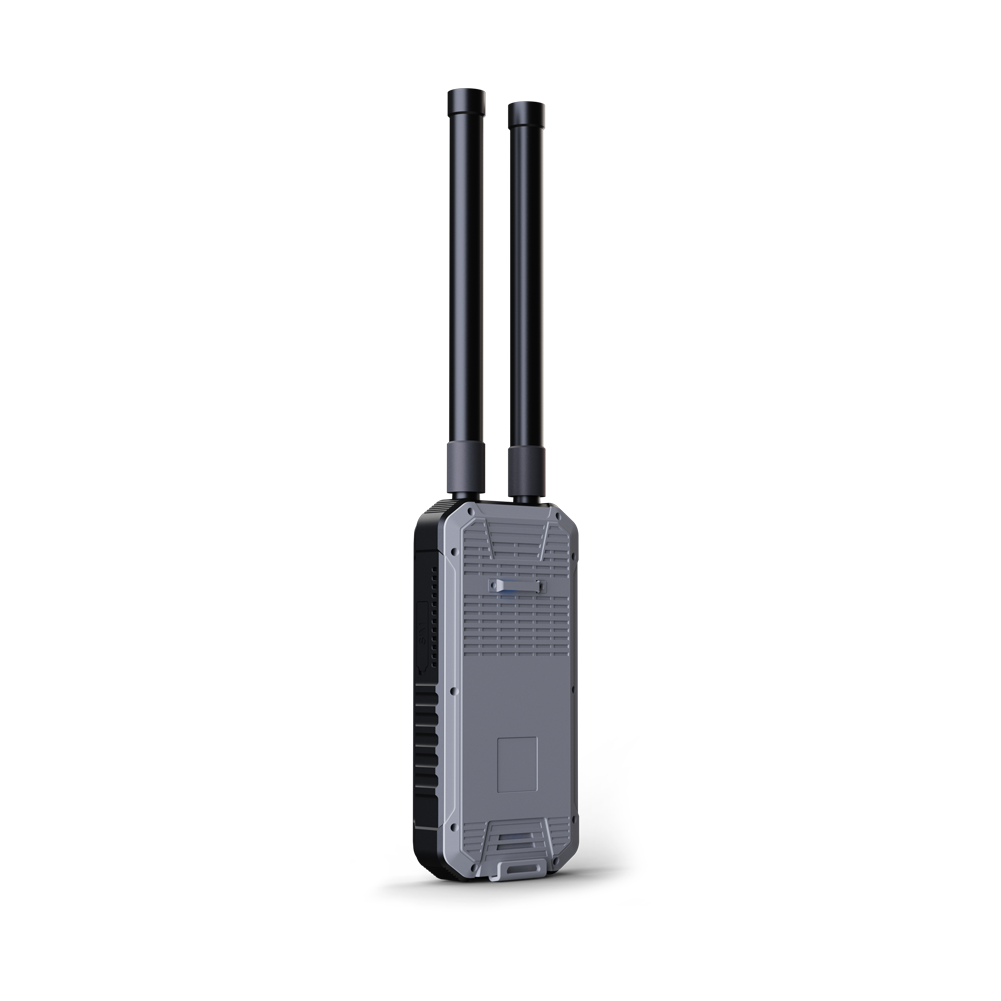

This product is H3 Pro, a single-soldier handheld, high-precision integrated detection andpositioning system. Equipped with a built-in low-altitude drone defense system, it enables drone detection, trajectory tracking, and remote controller (pilot) positioning. Additionally, it supports real-time analysis and monitoring of First-Person View (FPV) drone live feeds.
Featured
Passive Detection
Passively receives only, does not emit any electromagnetic signals, no impact on the surrounding environment.
Precise Identification
Precisely identify the SN, model, geo-location, speed, altitude, trajectory, and remote controller information of the drones in real time.
Trajectory Tracking
Multi-target trajectory tracking, pilot (remote control) tracking.
Position Navigation
Detect the pilot’s (remote control) position in real-time, one-click to track the pilot and the drone.
Black and White List
One-click to mark the whitelist, there will be no alarm for white-listed drones.
Compact and Portable
Light in weight and small in size. Portable, shockproof and drop-proof.
Specifications
| Performance Indicators | Detection Bands (Customizable) | 800MHz&900MHz, 1.2GHz, 2.4GHz, 5.2GHz&5.8GHz, Wi-Fi |
| Detection Distance | 0~3km (Differences exist due to different environments and drone types) | |
| Detection Quantity | ≥15 Drones (Simultaneous) | |
| Number of
Trajectories Tracking |
≥11 Drones (Simultaneous) | |
| Position Accuracy | ≤3m (RMS) | |
| Response Time | ≤5s | |
| Physical Indicators | Power Supply | Built-in lithium battery |
| Battery Capacity | 12000mAh | |
| Power Consumption | ≤15W | |
| Continuous Runtime | ≥4h (Support charging while using) | |
| Dimensions | 177mm × 89mm × 30mm | |
| Weight | ≤580g (±0.05kg, without antenna)
≤46g per antenna |
Product Profile: Tactical Drone Detection System
This portable protection system is powered by CRPC 2.0 technology, utilizing a deep data chain decoding solution. By analyzing specific data formats, it extracts real-time flight attributes to detect, identify, and locate unauthorized drones with high precision.
Unlike standard RF detectors, this system decodes the signal to provide granular data, including:
-
Identification: Drone serial number (SN) and specific model.
-
Telemetry: Real-time altitude, speed, and trajectory.
-
Geospatial Data: Precise drone geo-location and remote control (pilot) position.
-
Visuals: Accurate identification of graphic and video streams.
The device features an integrated, lightweight design optimized for single-soldier operations and rapid low-altitude protection deployments.
2. Key Features
Passive Detection: It only receives passively and does not emit any
electromagnetic signals, so it has no impact on the surrounding environment.
Precise Identification: Precisely identify the SN, model, geo-location, speed,
altitude, trajectory, and remote controller information of the drones in real time.
Trajectory Tracking: Multi-target trajectory tracking, pilot (remote control)
tracking.
Position Navigation: Detect the pilot’s (remote controller) position in
real-time, one-click to track the pilot and the drone.
Black and White List: One-click to mark the whitelist, there will be no alarm
for white-listed drones.
Network Management: Support network access to the control platform, to
achieve multi-device collaboration, and to achieve a wide range of prevention
and control scenarios.
Analog Video Transmission: The system can provide a live FPV stream of
detection, identification, and real-time video transmission.
Compact and Portable: Light in weight and small in size. Portable,
shockproof, and drop-proof.
