HDJS 3.0
HDJS 3.0 combines powerful, long-range defense capabilities with a lightweight, user-friendly design. The equipment forms a multi-layered defense system, providing detection, identification, and early warning, as well as:
High Integration
An all-in-one system that integrates detection and early warning, direction finding and positioning, as well as jamming and spoofing functions.
Precise Identification
Based on CRPC 2.0, it can precisely identify different drones with the same brand, the same model, and the same frequency band.
High-performance Touch Screen
Adopts a 5.5-inch touch screen, providing operators with a wider field of view and significantly enhancing operational convenience. The screen is designed to be highly bright, ensuring that information is clearly displayed even under intense outdoor sunlight.
Map Mode
The new imported map mode enables the operator to observe the drone's flight trajectory, location, and surrounding environment, allowing them to devise the most precise defense strategy.
Dual-Battery Design
The dual-battery power supply design ensures stable product operation. Even during prolonged operation or in the event of an emergency, the batteries can be replaced without shutting down (hot-swapping), ensuring that the device continues to operate and preventing any interruptions due to insufficient power.
Dual GPS Antenna Azimuth Direction Finding
Dual GPS antenna direction finding technology can accurately lock the direction of invading drones, providing accurate guidance for jamming and decoying operations.
Specifications
| Performance Indicators | Detection Bands | 400MHz~6GHz |
| Detection Distance | 0~3km (Differences exist due to different environments and drone types) | |
| Jamming Bands
(Customizable) |
433MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz | |
| Jamming Distance | 0~2km (Differences exist due to different environments and drone types) | |
| Spoofing Signal | GPS-L1, GLONASS-L1, BDS-B1 | |
| Spoofing Effect | Eviction, forced landing | |
| Spoofing Distance (Customizable) | 0~1km | |
| Physical Indicators | Power Supply | 1. Built-in lithium battery can be replaced 28.8V/3000mAh
2. AC 110~240V, 50/60Hz, 3.3A |
| Power Consumption | ≤500W (Maximum, Full-band Jamming) | |
| Continuous Runtime (Dual Batteries Mode) | ≥3h (Support battery replacement without shutting down)
≤1h (Single or Multiple Band Jamming) ≤20min (Full-band Jamming) |
|
| IP Rating | IP65 |
1. Product Introduction

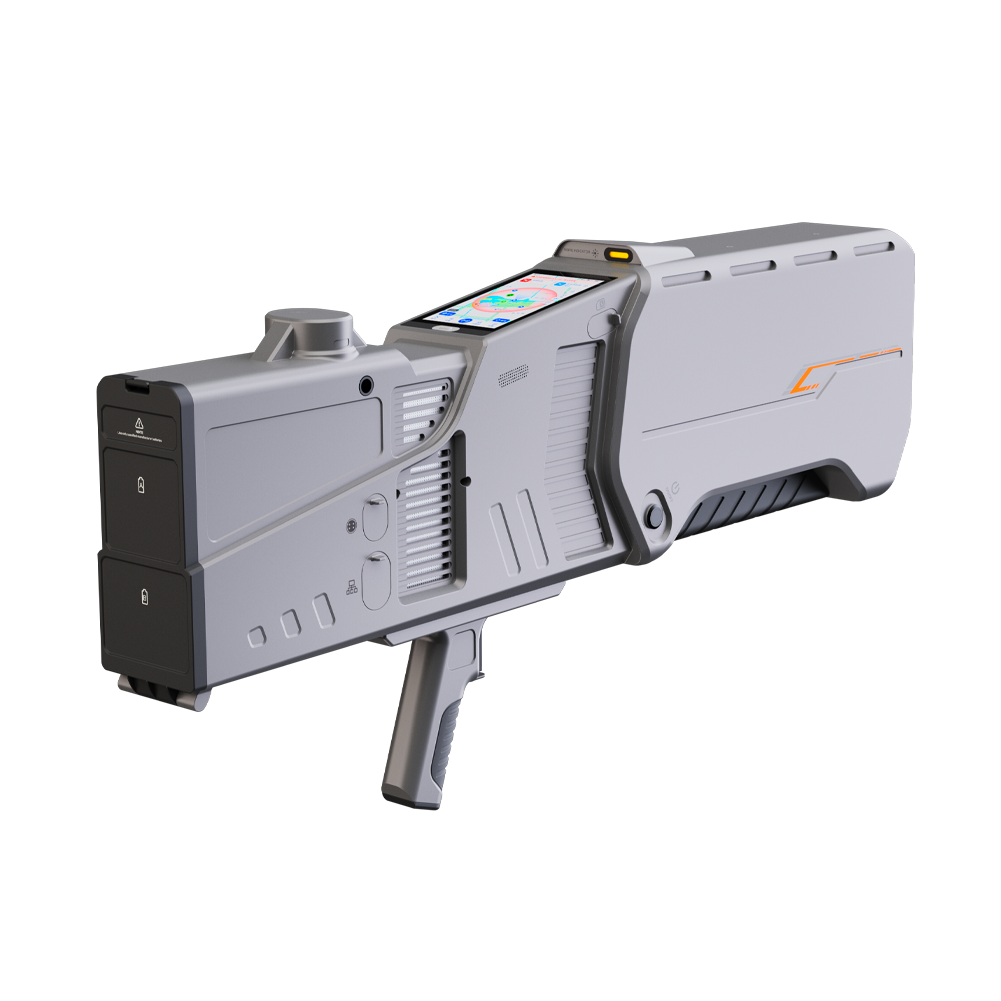

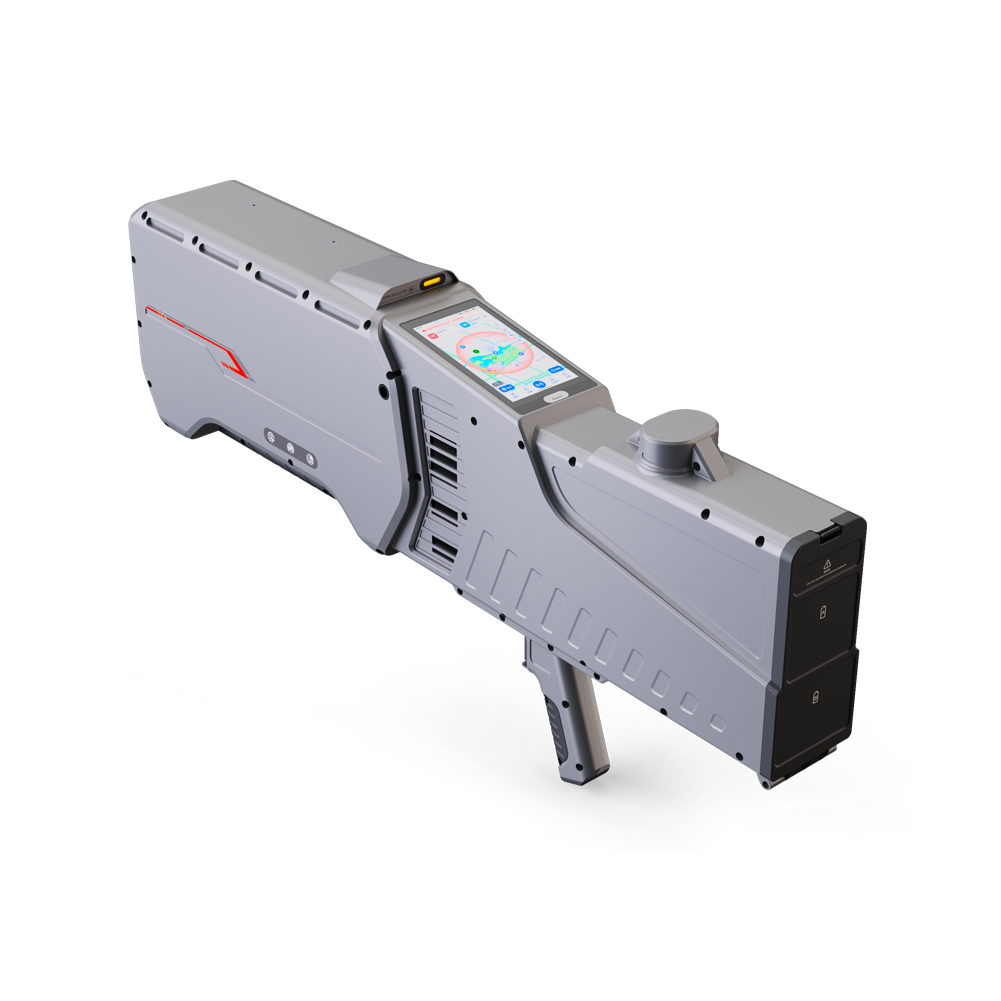

The product HDJS 3.0 is a man-portable handheld integrated defense system that combines detection, jamming, and spoofing capabilities. Integrating an advanced technical architecture and precision detection technologies, it can rapidly and accurately identify characteristic information of intruding drones, enabling early warning of potential threats.
The system supports identification and alerting, direction finding and positioning, jamming and suppression, as well as navigation spoofing, forming a complete defense system that provides reliable low-altitude security assurance for critical areas.
2. Key Features
-
Integrated Detection-Jamming-Spoofing Design Combining detection, jamming, and spoofing capabilities into a single system to streamline operational procedures and enhance mission efficiency. The adaptive strike band function automatically adjusts jamming strategies based on the communication frequency of intruding UAVs, ensuring maximum jamming effectiveness.
-
Precise Identification Based on CRPC technology, the system accurately identifies drones of the same brand, model, and frequency band but with different architectures, and marks the unique ID of each drone’s body.
-
Dual-GPS Antenna Direction-Finding By applying dual-GPS antenna direction-finding and positioning technology, the system enables precise locking of the intruding drone’s location, providing exact guidance for subsequent jamming and spoofing operations, thereby improving the accuracy and reliability of defense.
-
Continuous Drone Library Updates The system offers lifelong maintenance and upgrades for covered drone models, ensuring sustainable device usage and effectively addressing the rapid evolution of drone technology.
-
Visual Touchscreen Control Equipped with an integrated color touchscreen display, the device allows operators to accurately track the drone’s flight path, location, and surrounding geographical environment. It processes real-time data during drone detection, jamming, and spoofing operations, enabling the precise formulation of defense strategies.
-
Dual-Battery Power Supply The dual-battery power design provides strong support for the stable operation of the product, ensuring continuous performance during prolonged missions or unexpected situations.
