HDS51
The device HDS51 is used for drone detection, identification, and spoofing. It has the advantages of being user-friendly and offering mobile compatibility, combined with passive detection and spoofing functions. It can accurately detect, position, differentiate, and defend against drones in protected areas.
Detected Information
Accurately identify the frequency, brand, SN number, orientation, latitude and longitude, flight height, and pilot position of the drone.
Defense Capability
Equipped with all-round defense and multi-target spoofing capability to neutralize complex threats.
Multi-Mode Spoofing
Capable of simulating multi-standard, multi-band navigation satellites to generate valid GNSS simulation signals, significantly increasing spoofing success rates.
Smart Spoofing
Upon detecting an intruding UAV, the system actively transmits spoofing signals to force the drone to land or evict, ensuring the total security of the protected zone.
Integrated Detection & Spoofing
Equipped with a radio detection unit, the system provides 24/7 unattended operation, enabling rapid detection, identification, and spoofing of intruding drones in one seamless process.
Full-Covered Drone Library
Supports various drone brands such as DJI and AUTEL, as well as FPV drones, Wi-Fi drones, and DIY drones, etc.
Specifications
| Performance Indicators | Detection Bands | 100MHz~6GHz |
| Main Bands | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz | |
| Detection Distance | CRPC/RID/DroneID: 0~5km
(Target: DJI Mini5 Pro/ DJI Mavic3 Pro, in a clean electromagnetic environment) |
|
| 433MHz Data Link: 0~1.5km, 915MHz Data Link: 0~3km (Clean electromagnetic environment) | ||
| Spoofing Signal | GPS-L1, GLONASS-L1, BDS-B1 | |
| Spoofing Distance
(Customizable) |
0~1km | |
| Physical Indicators | Power Supply | Built-in lithium battery or AC110~240V |
| Continuous Runtime | 6h~7h | |
| Screen Size | 13.3 inch | |
| Dimensions | 470mm × 357mm × 176mm (Closed State) | |
| Weight | 14kg (Battery included) | |
| IP Rating | IP66 (Closed State) |
1. Product Profile

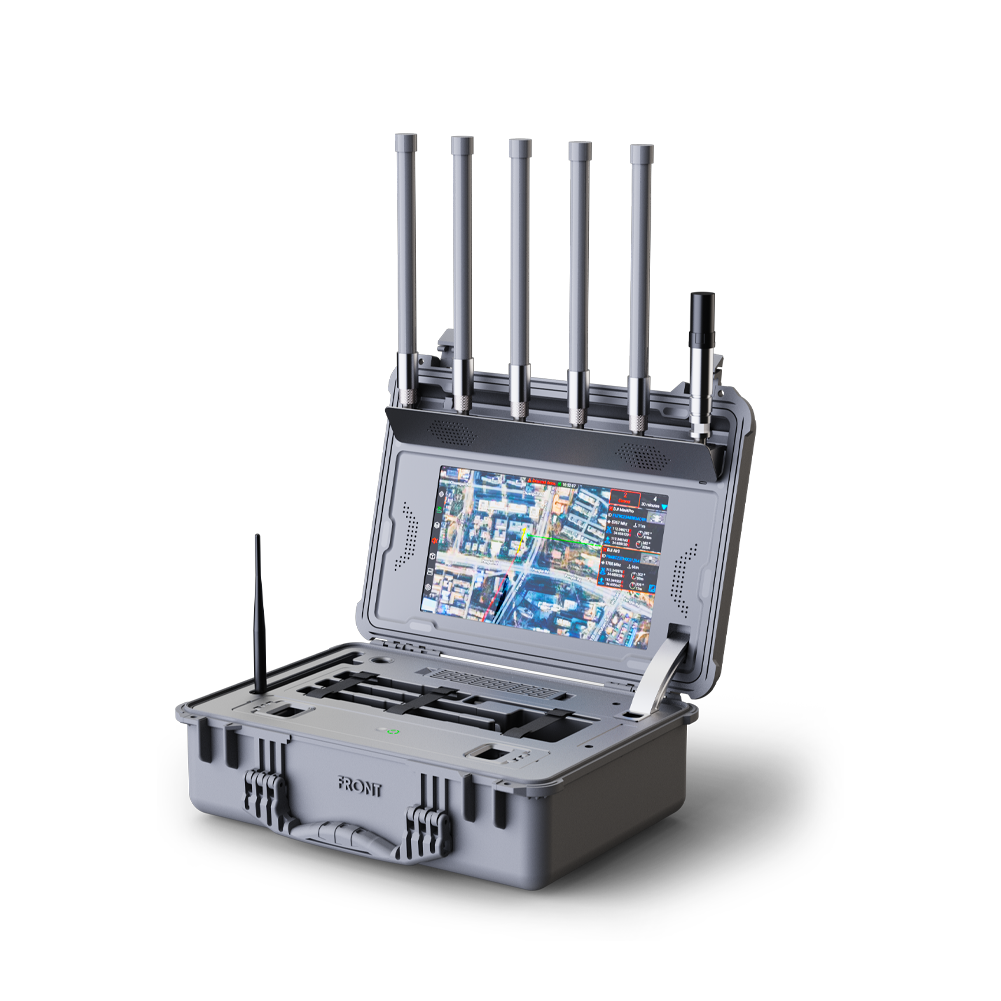

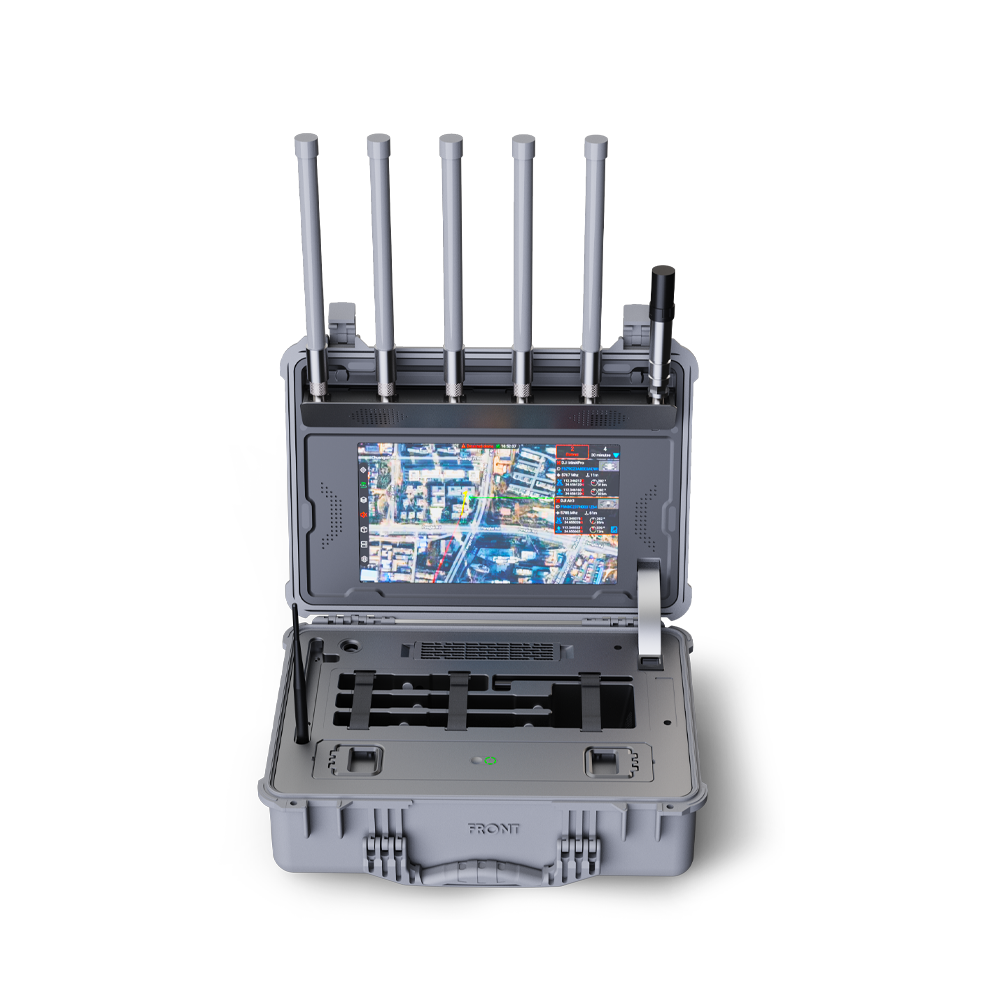

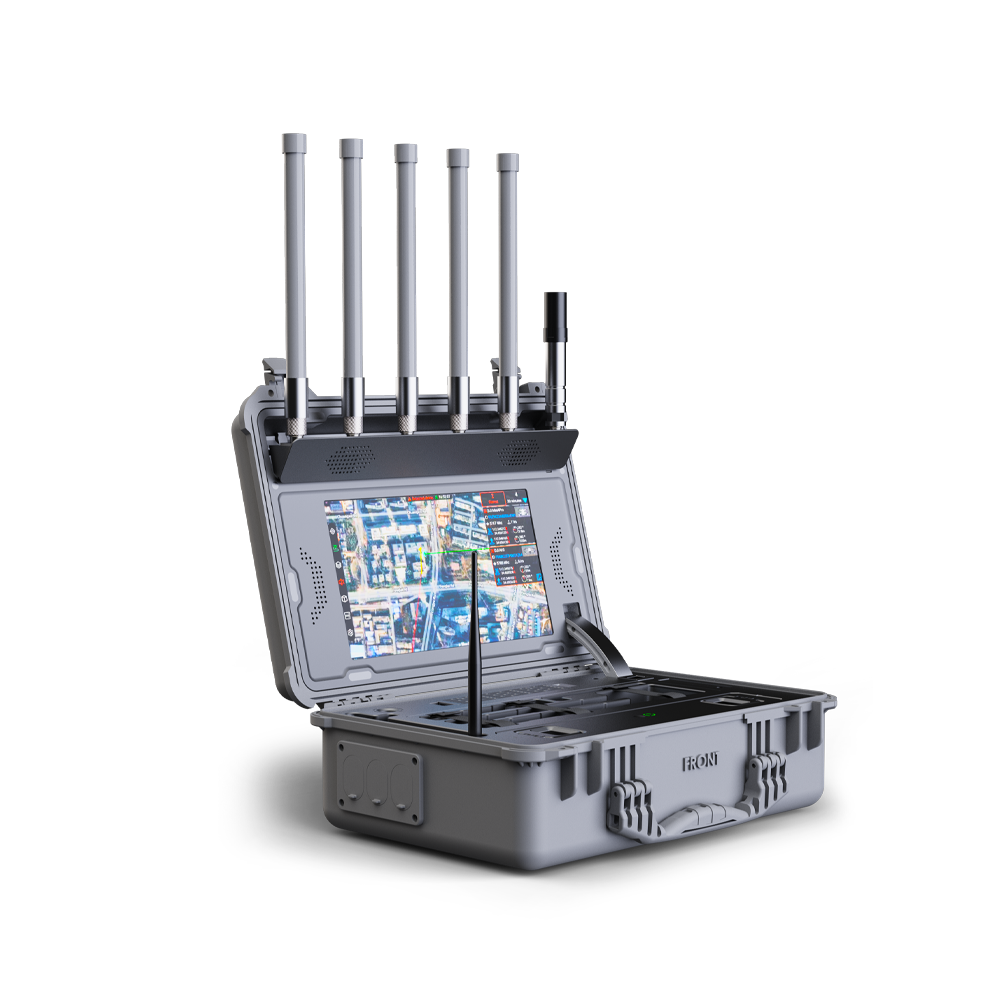

HDS51 is a mobile, integrated drone detection and spoofing defense system. It is equipped with core technologies for radio protocol cracking and multi-mode navigation spoofing, enabling precise identification and accurate positioning, as well as omnidirectional defense against drones within protected zones.
This device features an integrated enclosure design with a built-in touchscreen terminal, supporting standalone operation and rapid deployment in complex environments.
2. Key Features
-
Passive Detection: Passively receives only and does not emit any electromagnetic signals, ensuring environmental safety and stealth.
-
Precise Identification: Based on CRPC technology, it accurately identifies different drones of the same brand, model, frequency, and unique Drone ID.
-
Multi-mode Spoofing: Supports simulating multi-standard and multi-frequency navigation satellites, generating effective navigation simulation signals and significantly improving the success rate of deception.
-
Intelligent Spoofing: Upon detecting an intruding drone, the system proactively emits signals to carry out spoofing, forced landings, and expulsion, thereby safeguarding the security of the defense zone.
-
Strong Usability: Adopts a lightweight design supporting individual portability and rapid deployment, with no need for complex installation or configuration across rich application scenarios.
-
Black and Whitelist: Features one-click whitelist marking to keep authorized drones free from interference.
-
New Breakthrough Design:
-
Foldable Antenna Interface: Flexible storage and a sturdy, durable design for field use.
-
Plug-in Replaceable Battery: Allows for quick replacement and worry-free battery life during extended missions.
-
