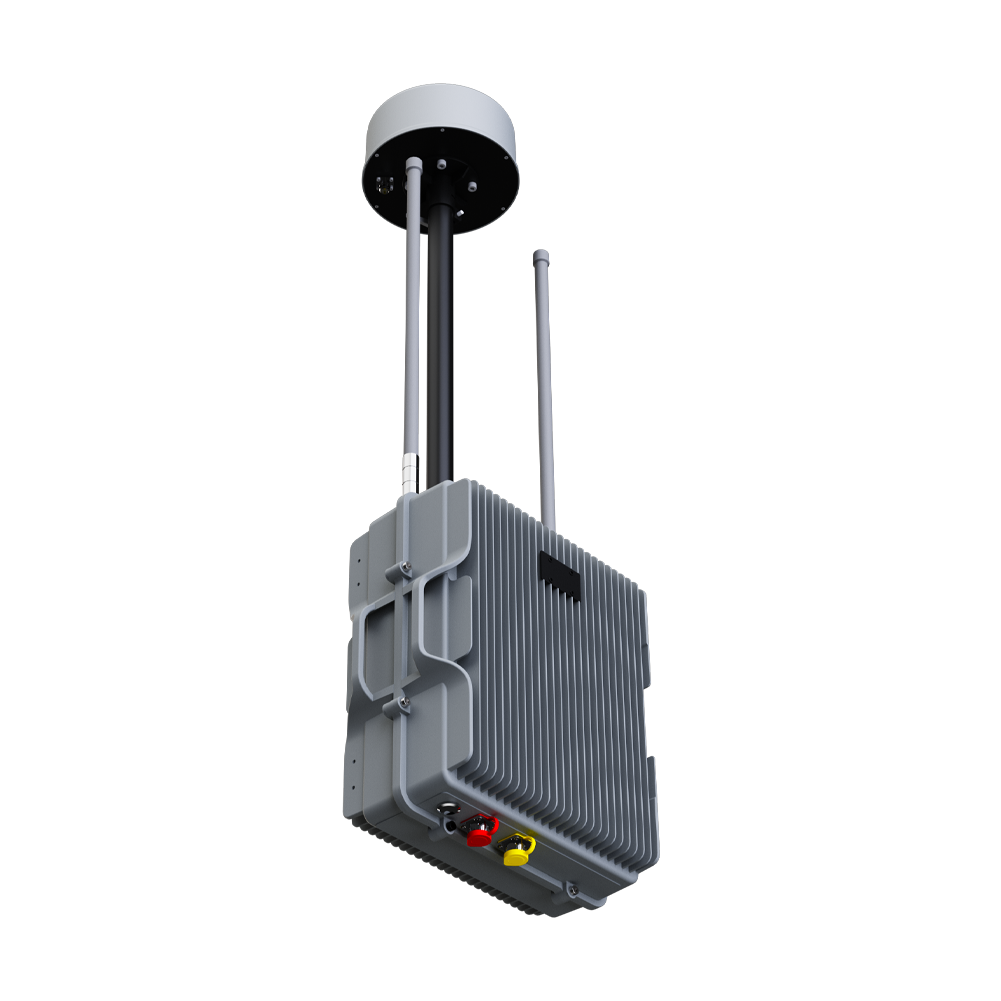

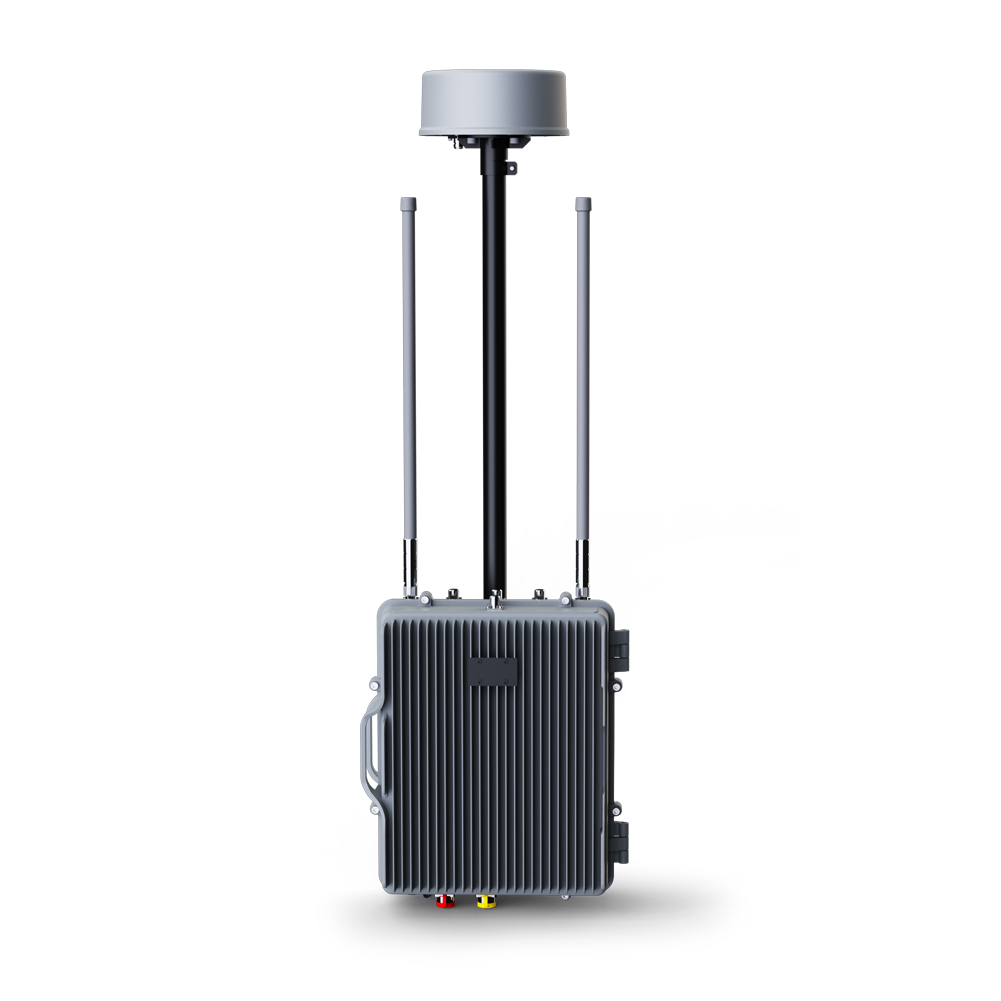

JV-1
The JV-1 Series is a stationary defense system, which requires integration with a detection device to achieve drone detection and defense capabilities through the low-altitude drone defense software platform.
Non-Standard Frequency Jamming
Uses narrowband and frequency-hopping jamming technology to effectively neutralize TBS/ELRS signals.
Alarm Notification
Supports sending custom alarms as text or images to FPV goggles or video receivers.
Full Coverage
Utilizes high-gain, omnidirectional antennas to provide 360° coverage and comprehensive jamming against drones.
Image Display
Integrated with detection systems to display real-time, first-person view (FPV) footage from the drone directly on the software interface.
Comprehensive Defense
Combines narrowband and frequency-hopping jamming with wideband jamming for all-around countermeasures.
Deployment Methods
Supports multiple configurations, including routine fixed-position, vehicle-mounted, and other mobile deployment options.
Specifications
| Performance Indicators | Jamming Principle | RF signal suppression jamming |
| Jamming Distance | 0~1km (Depending on the testing environments and the model of the jamming target drone) | |
| Jamming Bands | 868MHz&915MHz, 1.2GHz, 5.8GHz | |
| Jamming Range | Horizontal 360°, Vertical ±90° | |
| Jamming to Signal Ratio | ≈4:1 (Analog Image Transmission 1.2GHz/2W; 5.8GHz/2.5W; H = 100m) | |
| ≈1:1 (TBS 868/915MHz; Power: 1W & 2W; H = 100m) | ||
| Physical Indicators | Power Supply | AC 110~240V |
| Dimensions | 489mm × 461mm × 309mm
(with fans, but without antennas) |
|
| Weight | ≤35kg (without antennas) | |
| Operating Temperature | -40°C to +55°C | |
| IP Rating | IP66 |
1. Product Profile
JV-1 is a specialized product designed for low-altitude safety defense in complex airspace environments. It specifically targets non-standard frequency band drone targets.
The system is capable of blocking and jamming:
-
Team Black Sheep (TBS) Drones: Dual-frequency communication signals (868 MHz / 915 MHz).
-
FPV Analog Video Transmission Drones.
JV-1 is highly adaptable and can be deployed in various high-security scenarios, including public security, prison facilities, and important event security.
2. Key Features
-
FPV & DIY Drone Jamming: Utilizes narrowband and frequency-hopping jamming technology to effectively neutralize TBS and ELRS signals.
-
Alarm Notification: Supports sending custom alarms (text or images) directly to FPV goggles or video receivers as a proactive deterrent.
-
Full Coverage: Uses high-gain, omnidirectional antennas to provide 360° coverage and comprehensive jamming against drones.
-
Image Display: Seamlessly integrated with detection systems, allowing the software interface to display real-time, first-person view (FPV) footage from the target drone.
-
Comprehensive Defense: Combines precision narrowband and frequency-hopping jamming with wideband jamming for all-around countermeasures.
-
Network Integration: Supports full network integration with radio detection devices to enable autonomous, unattended operation.
-
Deployment Methods: Offers flexible installation options, including routine fixed-position, vehicle-mounted, and other mobile deployment configurations.
