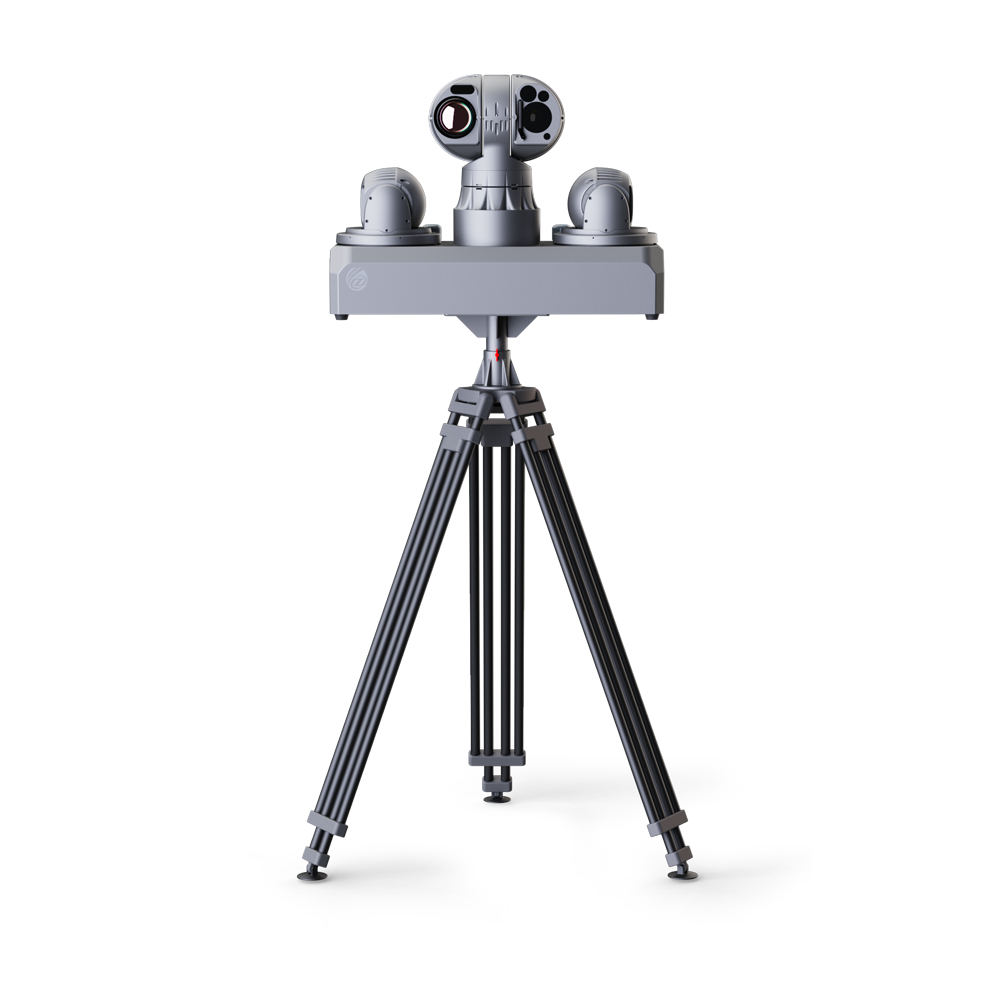

VAR300
VAR300 is a stationary, high-performance, multi-integrated active photoelectric detection device that adopts a multi-spectrum and multi-technology fusion design.
It makes full use of deep neural network algorithms to automatically extract and classify features from image data. This significantly improves the accuracy and effectiveness of detecting and identifying “low, slow, and small” drones, ensuring high-reliability surveillance in complex environments.
Featured
Active Detection
Features automatic target search and 7/24 real-time detection of drones within the low-altitude range.
Intelligent Identification
Optimized for detecting and identifying drones, powered by an HD video module and AI vision deep learning algorithms.
Tracking Record
Records the flight trajectory and provides image information of drones, offering reliable evidence for subsequent disposal and analysis.
All-Weather Detection
Integrated with optical imaging and infrared (thermal) imaging technology to ensure reliable operation during both day and night, as well as in harsh weather conditions.
Target Location
Once a drone is detected, the system locks onto the target to identify and display precise information regarding the drone's classification and location.
Real-time Monitoring
Supports real-time viewing of device detection results, enabling users to respond and make defense decisions quickly.
Specifications
| Performance Indicators | Detection Mode | Active scanning, searching, identifying, and tracking (without the guidance of other devices) |
| Identifying Target | Multi-rotor drones, birds | |
| Detection Distance | Daylight: ≥1km, Night: ≥0.5km
(Target: DJI Mavic3) |
|
| Tracking Distance | Daylight: ≥1.5km, Night: ≥0.8km
(Target: DJI Mavic3) |
|
| Direction Finding Accuracy | ≤2° (RMS) | |
| Resolution | 1920 × 1080 (Optical) | |
| Physical Indicators | Power Supply | AC 110~240V |
| Dimensions | 766mm × 300mm × 538mm (±2mm) | |
| Weight | ≤37kg | |
| Operating Temperature | -20°C to +60°C | |
| IP Rating | IP66 |
VAR300 is a stationary high-performance multi-integrated active photoelectric detection device that adopts multi-spectrum and multi-technology fusion design. It makes full use of deep neural network algorithms to automatically extract and classify features from image data to improve the accuracy and effectiveness of detection and identification of “low, slow and small” drones.
Automatic Tracking
Record the flight path and image information of the drone, providing evidence for subsequent processing and completing the entire process of closed-loop disposal.
Multi-spectral Detection
Integrate visible light and infrared thermal imaging technologies to realize all-weather detection (applicable to all day, all weather).
Intelligent Identification
Long-range small target algorithm based on high-resolution camera module and AI vision deep learning, applicable to low-altitude target detection and identification.
Target Localization
Automatically locks on to the target after detecting a drone, and displays information such as the number and Geo-location.
