VM
The Vehicle-Mounted Detection and Jamming System (VM) uses Cognitive Radio Protocol Cracking+ message-level decoding (CRPC+) technology. The equipment adopts an integrated design concept, integrates detection, early warning, target direction finding,jamming, display and control networking functions into one. It can be used independently in a single set or in a network of multiple sets of equipment, visually displaying the equipment
and target status on control terminal.
Full Detection Range
Features 360° omnidirectional detection optimized for radio signal characteristics.
Precise Identification
Capable of identifying different drones even when they are of the same brand, same model, and operating on the same frequency.
Precise Directional Finding
Accurately displays direction and positioning data for drone intrusions across the 2.4 GHz and 5.8 GHz bands.
Precise Jamming
Implements precision jamming against selected drones of the same model, frequency, and orientation, ensuring zero impact on white-listed drones.
Integrated System
A comprehensive solution combining detection, identification, jamming, and spoofing into a single, independent system.
Lightweight and Flexible

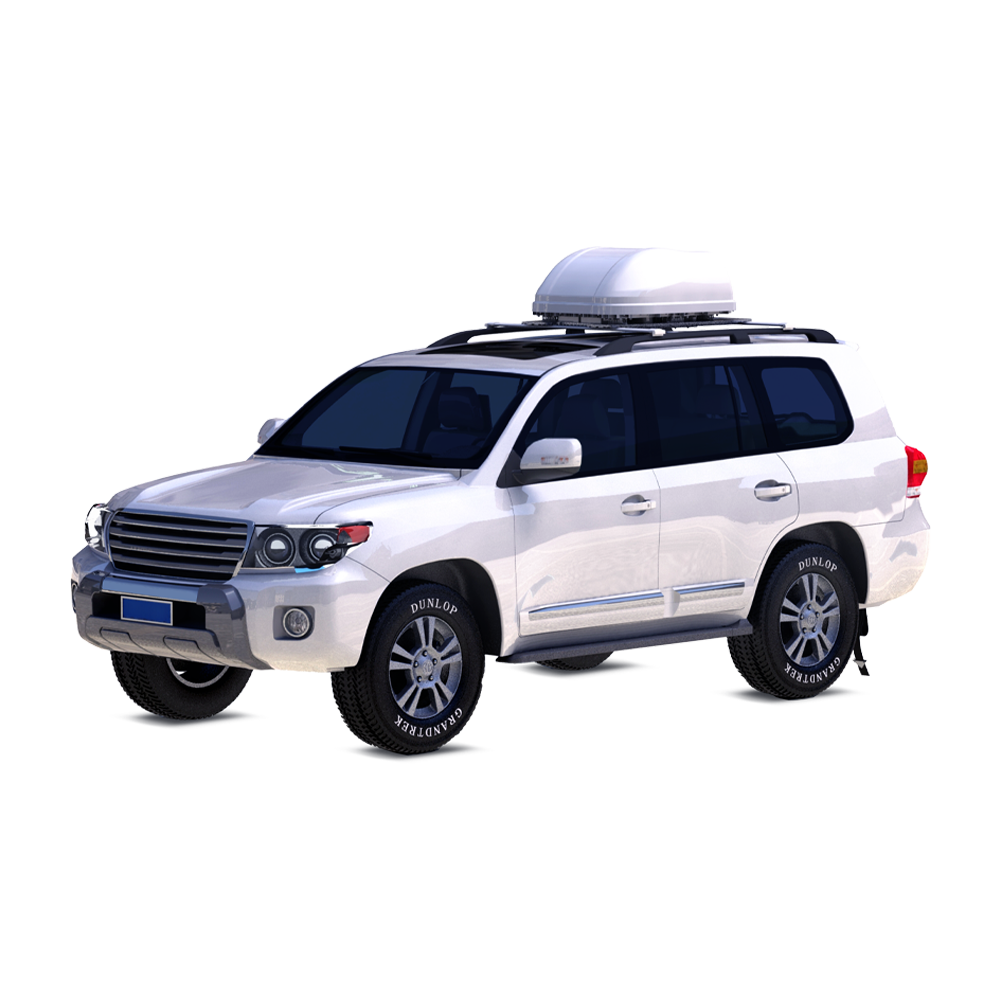

Built on a vehicle-based platform, making it ideal for mobile accompanying protection and rapid-response scenarios.
Specifications
| Performance Indicators | Detection Bands | 30MHz~6GHz |
| Detection Distance | 0~3km (Differences exist due to different environments and drone types) | |
| Jamming bands
(Customizable) |
400MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz | |
| Jamming Distance | 0~2km (Differences exist due to different environments and drone types) | |
| Jamming to Signal Ratio | ≥2:1 (Target: DJI Mavic3) | |
| Spoofing Signal | GPS-L1, GLONASS-L1, BDS-B1 | |
| Spoofing Distance (Customizable) | 0~1km | |
| Physical Indicators | Power Supply | Vehicle Power Supply
AC110V~240V |
| Power Consumption | ≤150W (Detection)
≤1400W (Full-band jamming) |
|
| Dimensions | 985mm × 795mm × 434mm (±2mm) | |
| Weight | 60kg (±2kg) | |
| Operating Temperature | -40°C~60°C | |
| IP Rating | IP66 |
1. Product Profile
The Vehicle-Mounted Drone Detection Jamming and Spoofing All-in-one System is engineered for rapid mobility, flexible deployment, and real-time response. This comprehensive solution is specifically designed for dynamic low-altitude security scenarios and mobile protection missions.
The system is highly effective for versatile deployment in:
-
Public Safety & Correctional Facilities
-
Aviation (Airports) & Major Sports Venues
-
Water Conservancy, Hydropower, and Critical Infrastructure
2. Key Features
-
Full-band Detection: Passively monitors ultra-wideband signals from 30MHz to 6GHz without emitting electromagnetic radiation, ensuring stealth and environmental safety.
-
Lightweight and Flexible: Built on a robust vehicle-based platform, optimized for all types of mobile accompanying protection and rapid-response tasks.
-
Integrated System: A true “all-in-one” solution that combines detection, identification, jamming, command, and control into a single, independent operational system.
-
Autonomous Function: Features a “one-click” autonomous mode, enabling the system to automatically defend against drone intrusions 24/7 without manual intervention.
-
Black and White List: Allows for one-click whitelist marking, ensuring authorized drones remain free from jamming and operate without interruption.
