DF10 Max
DF10 Max Series is a fully integrated drone detection, direction finding, and identification system designed for complex electromagnetic environments. It supports full-band direction finding, multi-target tracking, and detection up to 8km.
Features
Passive Detection
Zero electromagnetic emissions. Passive-only reception ensures total stealth — ideal for covert and high-security deployments.
Precision Identification
Powered by CRPC technology, the B-D4 distinguishes individual drones of the same brand, model, and frequency band, and tags each with its unique airframe ID.
Non-Cooperative Target Tracking
Beyond cooperative targets, the system detects, identifies, and locates non-cooperative (unknown / DIY / modified) UAVs.
Full-Spectrum Direction Finding
Multi-array direction-finding antennas paired with an AI compute unit deliver stable bearing outputs even in complex electromagnetic environments.
All-Drone Coverage
Supports direction finding and detection across commercial drones, FPV racing drones, and DIY / custom-built UAVs.
Anti-Jamming Resilience
Accurately determines intrusion bearings with second-level refresh rates, providing rapid and reliable target indication even under electronic attack.
Specifications
| Detection Principle | Passive reception only — emits no electromagnetic signals |
| Detection Range | 100 MHz – 8 GHz |
| Key Frequency Bands | 433 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz |
| Detection Radius | 0 – 8 km (1) |
| Direction-Finding Band | 100 MHz – 6 GHz |
| Direction-Finding Radius | 0 – 5 km (1) |
| Direction-Finding Accuracy | ≤ 5° (RMS) |
| Coverage | Horizontal 360° |
| Simultaneous Targets | ≥ 35 drones (concurrent detection) |
| Positioning Methods | CRPC 2.0 / Drone ID / RID decoding; AOA / TDOA multi-station networked positioning |
| Power Supply | AC 110V – 240V |
| Power Consumption | ≤ 300W (at ambient temperature) |

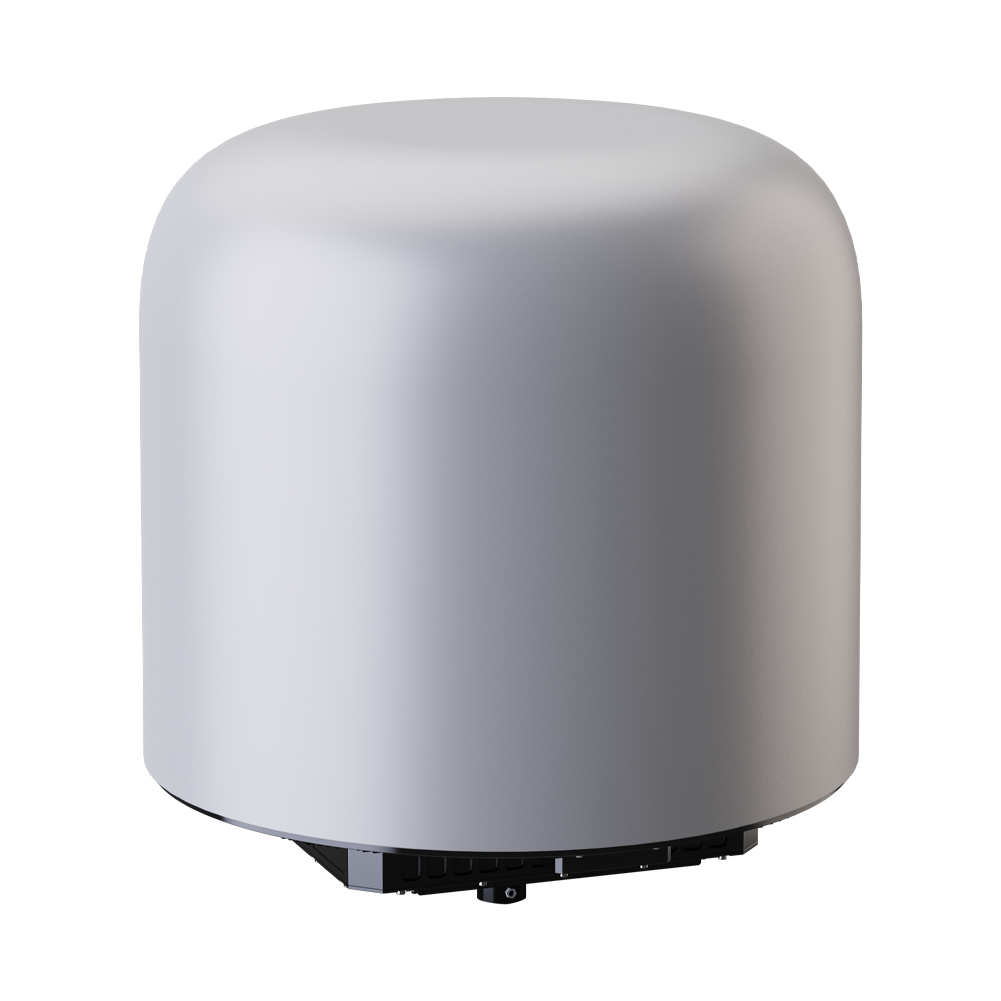

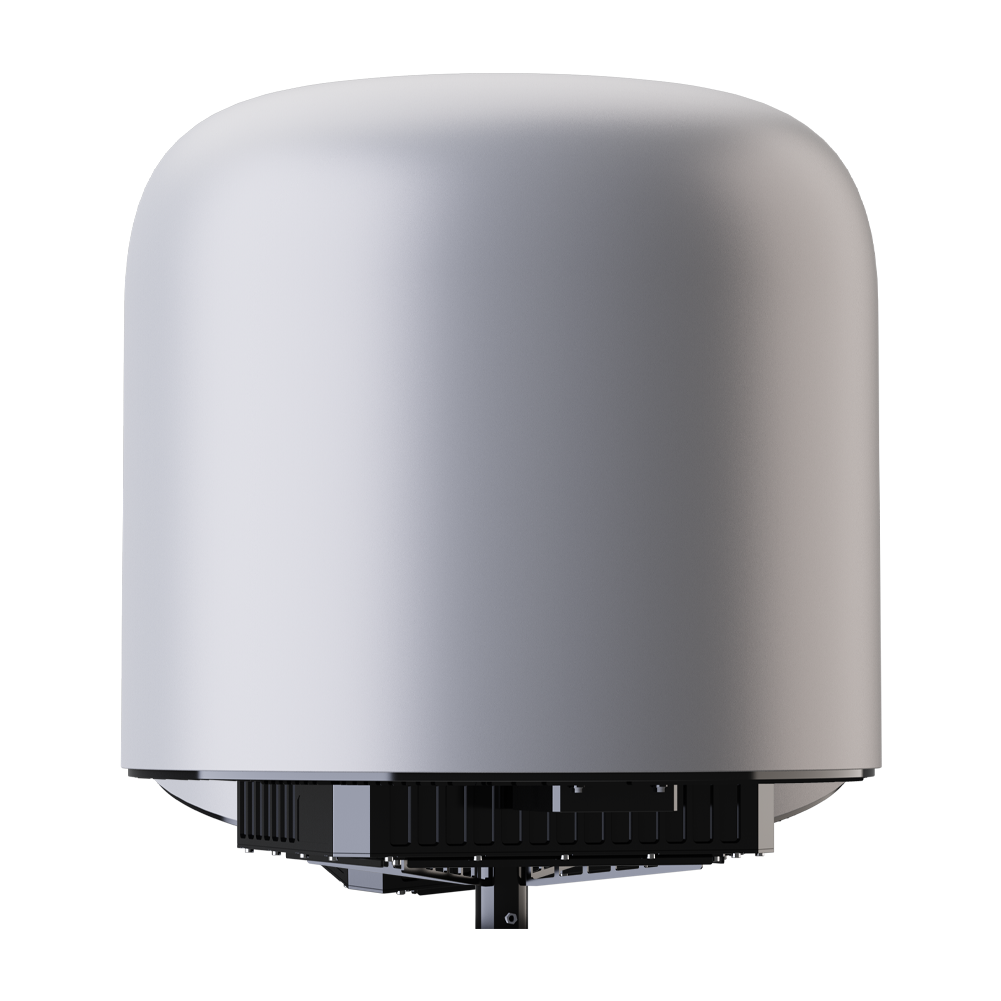

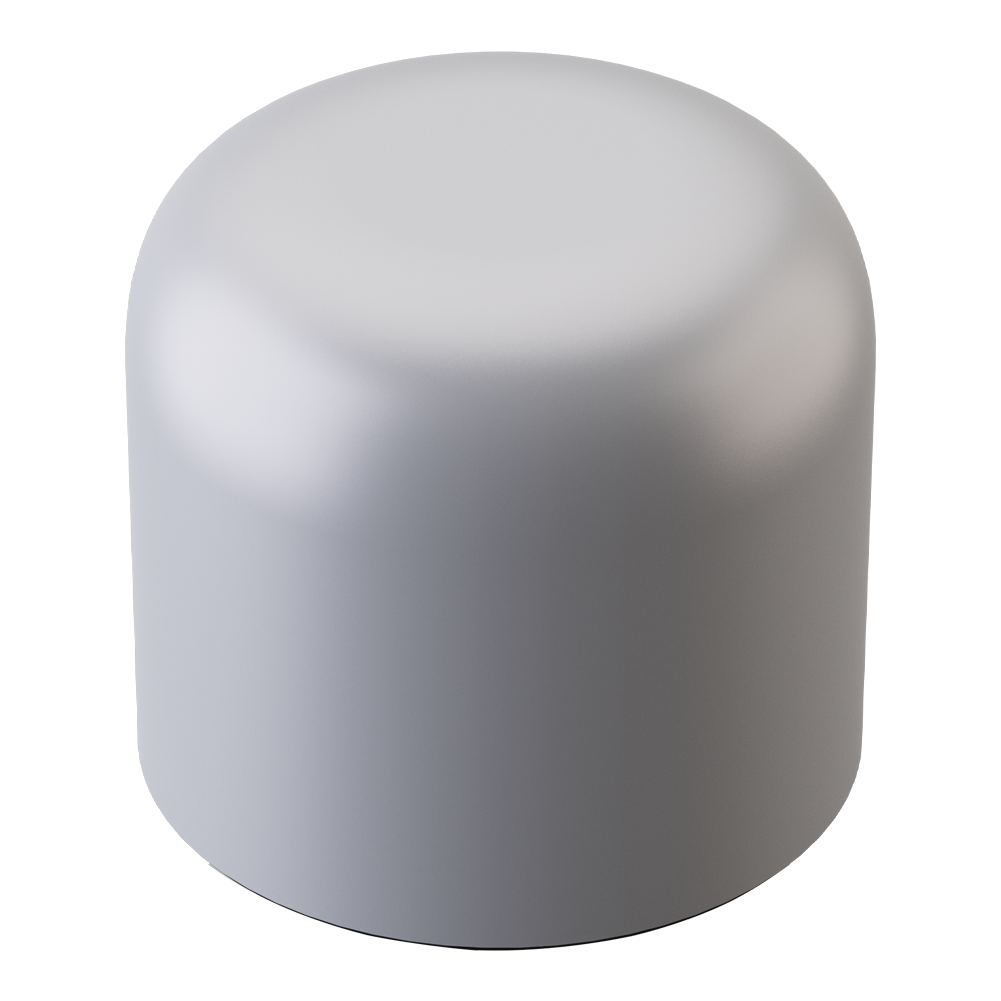

| Dimensions — Detection Antenna | Ø550 mm × H500 mm |
| Dimensions — Compute Enclosure | 500 mm × 450 mm × 240 mm |
| Weight — Detection Antenna | 20 kg (cables excluded) |
| Weight — Compute Enclosure | 40 kg (cables excluded) |
| Operating Temperature | -40°C to 65°C |
| Ingress Protection | IP65 |
(1) Test target: DJI Mavic 3 Pro; suburban environment with clear electromagnetic conditions and no significant obstructions.
Product Overview
The DF10 MAX is a fixed-mount, high-performance drone detection and identification system engineered for mission-critical airspace security. Featuring a multi-function integrated design with full-band direction-finding capability, it covers low-frequency FPV racing drones and non-standard DIY UAVs that conventional systems often miss.
The DF10 MAX delivers complete coverage across all drone classes through single-station analytical positioning and multi-station networked fusion positioning, enabling full-dimensional tracking and localization of UAV targets in real time.
Key Features
Passive Detection — Zero electromagnetic emissions. Passive-only reception ensures total stealth — ideal for covert and high-security deployments.
Precision Identification — Powered by CRPC technology, the B-D4 distinguishes individual drones of the same brand, model, and frequency band, and tags each with its unique airframe ID.
Non-Cooperative Target Tracking — Beyond cooperative targets, the system detects, identifies, and locates non-cooperative (unknown / DIY / modified) UAVs.
Full-Spectrum Direction Finding — Multi-array direction-finding antennas paired with an AI compute unit deliver stable bearing outputs even in complex electromagnetic environments.
All-Drone Coverage — Supports direction finding and detection across commercial drones, FPV racing drones, and DIY / custom-built UAVs.
Whitelist & Blacklist — One-click whitelist management — authorized drones operate without triggering alerts. Blacklist records persist across power cycles.
Anti-Jamming Resilience — Accurately determines intrusion bearings with second-level refresh rates, providing rapid and reliable target indication even under electronic attack.
All-in-One Integration — Every module is housed in a single unified enclosure. No additional assembly required — discreet form factor, straightforward installation.
