DPro-MA

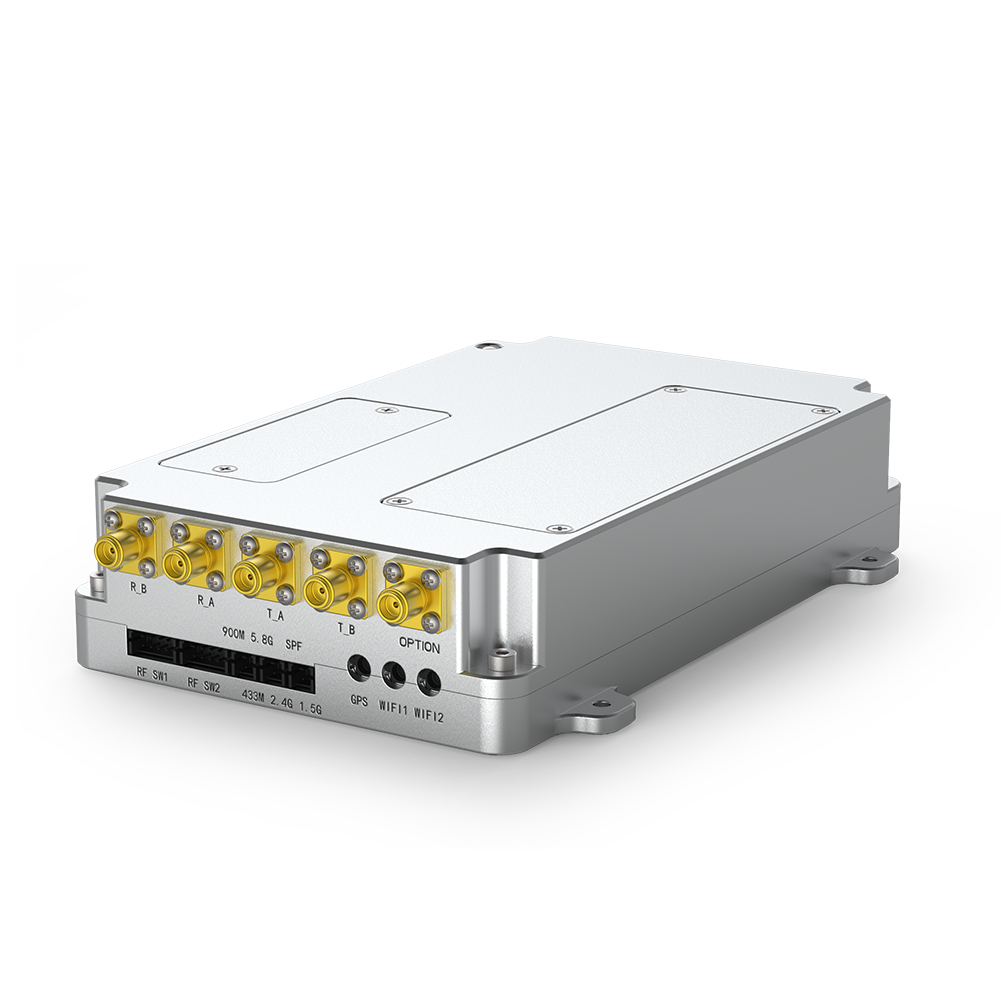

The D Pro-MA Drone Detection Module features a highly integrated design. It comprises a radio frequency (RF) unit, a computing unit, and a built-in Drone Defense Software Platform. Based on advanced CRPC technology, it can detect and identify popular drone models (e.g., DJI and Autel) as well as DIY drones. The standard interface design reduces the complexity of interface development, providing a flexible solution for designing low-altitude drone detection products.
Passive Detection
Passively receives only and does not emit any electromagnetic signals.
Accurate Identification
It precisely identifies the electronic fingerprint ID of drones.
Black and White List
Alerts are implemented for blacklisted (non-cooperative) drones, while alerts for whitelisted (cooperative) ones are suppressed.
Built-in Computing Unit
Features a high-performance computing unit, eliminating the need for additional configuration.
Extended Interoperability
Supports the joint debugging and integration of radio jammers, radars, electro-optical devices, and other equipment to expand functionality.
API Interface
Provides standardized API documentation to meet software platform integration requirements.
Specifications
| Detection Principle | Passive detection |
| Detection Bands | 70MHz~6GHz |
| Main Bands | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Detection Sensitivity | -105dBm |
| Communication Interface | RJ45 |
| Power Supply | DC 24V Power Supply |
| Power Consumption | ≤60W |
| Dimensions | 174mm (L) × 127mm (W) × 38mm (H) |
| Weight | 520g |
| Operating Temperature | -20°C~50°C |
1. Product Profile
D Pro-MA Drone Detection Module features a highly integrated design. It comprises a radio frequency (RF) unit, a computing unit, and a built-in Drone Defense Software Platform. Based on advanced CRPC technology, it can detect and identify popular drone models (e.g., DJI and Autel) as well as DIY drones. The standard interface design reduces the complexity of interface development, providing a flexible solution for designing low-altitude drone detection products.
1. Key Features
Passive Detection: Passively receives only and does not emit any electromagnetic signals.
Accurate Identification: It precisely identifies the electronic fingerprint ID of drones.
Black and White List: Alerts are implemented for blacklisted (non-cooperative) drones, while alerts for whitelisted (cooperative) ones are suppressed.
Built-in Computing Unit: Features a high-performance computing unit, eliminating the need for additional configuration.
Extended Interoperability: Supports the joint debugging and integration of radio jammers, radars, electro-optical devices, and other equipment to expand functionality.
API Interface: Provides standardized API documentation to meet software platform integration requirements.
