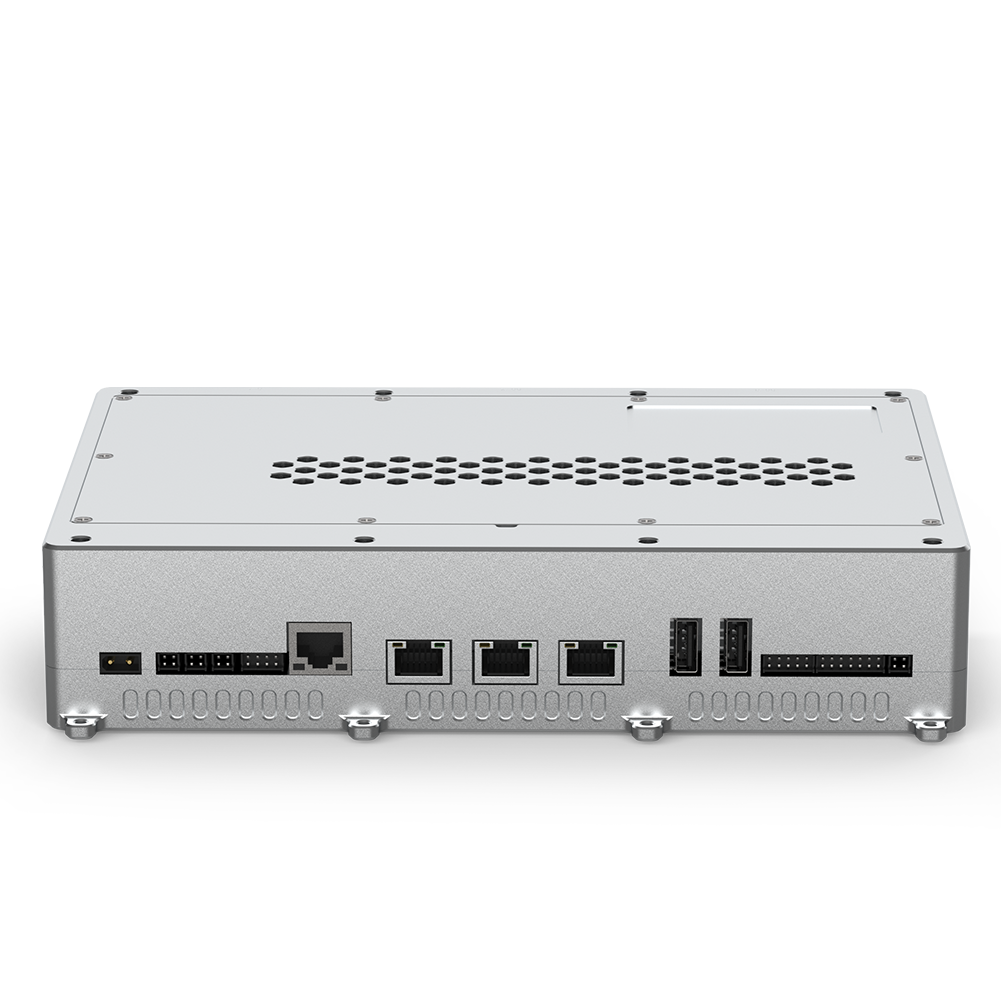

DF Pro-MB
DFPro-MB is a high-performance drone detection module that offers a rich set of interfaces
and functions. The module comprises a radiofrequency (RF)unit, a computing unit, and a
built-in Drone Defense Software Platform, integrating detection and direction-finding
functions into a single device. Based on advanced CRPC technology, it can detect and
identify popular drone models (e.g., DJI and Autel) as well as DIY drones. The standardized interface design reduces development complexity, providing a flexible solution for designing
low-altitude detection products.
Featured
Passive Detection
Passively receives only and does not emit any electromagnetic signals.
Accurate Identification
It precisely identifies the electronic fingerprint ID of drones.
Multi-Dimensional Identification
Accurately identifies drone model, frequency band, drone serial ID, latitude/longitude, altitude, flight speed, flight trajectory, and other information.
Modular Design
Provides standard physical interfaces and API development interfaces,with a built-in command and control platform, facilitating secondary development.
Function Expansion
Supports expansion of external direction-finding antennas, jamming interference, navigation spoofing, and other functional modules.
API Interface
Provides standardized API documentation to meet software platform integration requirements.
Specifications
| Detection Principle | Passive detection and direction-finding |
| Detection Bands | 70MHz~6GHz |
| Main Bands | 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz |
| Power Supply | 24V power, supports 14~32V wide voltage input |
| Power Consumption | Peak ≤ 160W
Rated ≤ 100W |
| Size | 230mm (L) × 160mm (W) × 34mm (H) (±1mm) |
| Weight | 670g |
| Operating Temperature | -25°C to 60°C |
The DF-MA UAV Detection and Identification Module adopts a highly integrated design concept. It is composed of a radio frequency (RF) unit, a computing unit, and a control unit. Developed based on the advanced Cognitive Radio Protocol Cracking (CRPC) 2.0 technology, it can detect and identify mainstream UAV models (such as DJI, AUTEL, etc.) and DIY drones. With a standard interface design, which reduces the complexity of module integration and interface development, providing flexible solutions for various low-altitude protection scenarios, including fixed, airborne, portable, and single soldier applications
