RF detection vs radar vs optical sensors which counter-drone technology fits your site?

Introduction

A security director at a Middle Eastern airport called us last year with a problem. He’d bought a counter-drone system, radar plus RF detection, plus cameras, and it was generating 200+ alerts per day. His team was exhausted. The system was technically working, but they couldn’t keep up with the noise. By month three, they were ignoring most alerts entirely.

That’s the thing about detection technology. The hard part isn’t buying sensors. It’s matching the sensors to the environment in a way that produces actionable information without drowning your operators.

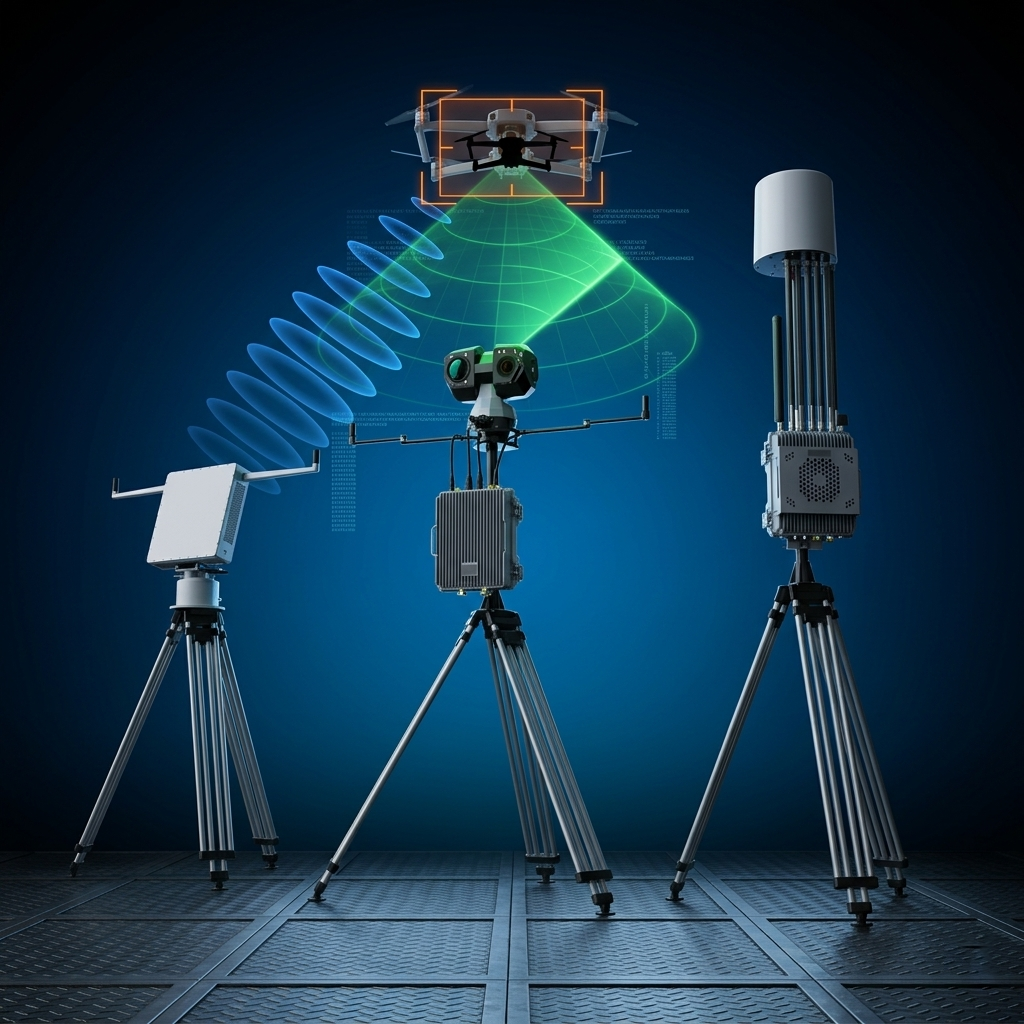

This article compares the three primary detection technologies, radio frequency (RF), radar, and optical sensors, in terms of how they actually perform in the field. Not spec sheets. Not marketing claims. What happens when you deploy them?

If you’re in procurement and trying to figure out where to invest a limited budget, this is the framework we wish someone had given us.

Radio frequency detection

How it works

RF detection listens for the signals drones use to communicate with their controllers. Every commercial drone, DJI, Autel, Parrot, and the various Chinese OEMs, transmits on known bands: primarily 2.4 GHz and 5.8 GHz, sometimes 900 MHz or 1.2 GHz for longer-range links.

An RF system consists of one or more antennas plus processing hardware that monitors these bands. When it detects a signal matching known drone signatures, it can identify the model and sometimes extract a unique identifier, similar to a MAC address.

The detection range depends on antenna gain, processing sensitivity, and environmental conditions. In practice, most RF systems detect commercial drones at 2-5 km under favorable conditions. Urban environments with high RF noise reduce that range.

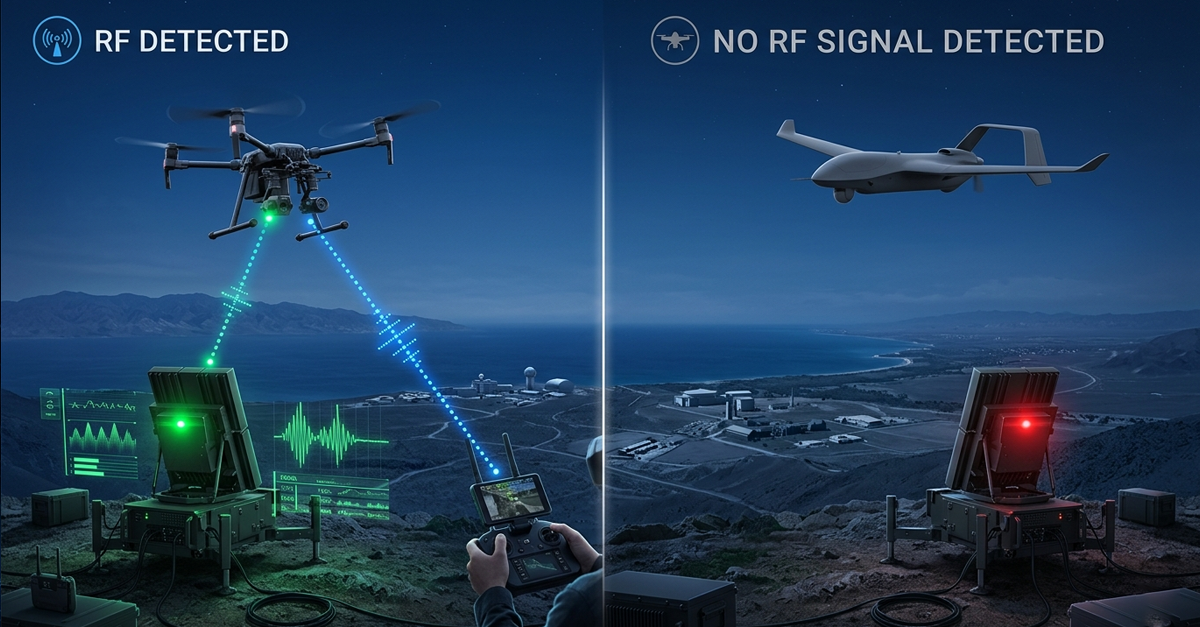

What RF actually detects

Here’s the constraint that matters most: RF only detects drones that are transmitting. If a drone is flying autonomously, following pre-programmed waypoints with no active link to a controller, RF sees nothing. If a drone is using a frequency you’re not monitoring, RF sees nothing. If a drone has been modified to use encrypted or proprietary links, RF probably sees nothing.

This isn’t a minor gap. The UK Ministry of Defence estimated in a 2023 briefing that roughly 15-20% of drone incursions at sensitive sites involved autonomous flight. That number is climbing as cheap flight controllers with GPS waypoint capabilities become widely available.

RF detection is strongest against amateur operators, people flying DJI consumer drones near your perimeter, because they don’t know better. It’s weakest against anyone who knows you’re listening.

The library problem

RF systems work by matching detected signals against a library of known signatures. That library needs constant updating. Every time a manufacturer changes a protocol, DJI updates the OcuSync firmware, Autel releases a new transmission standard, the vendor has to reverse-engineer it and push an update to customers.

Between updates, modified drones pass through undetected. The lag isn’t theoretical. After DJI released the Mini 3 Pro with an updated transmission protocol in 2022, several counter-drone vendors took 4-6 months to fully integrate the new signatures. During that window, those drones flew through coverage.

LZ TECH’s approach, CRPC or Cognitive Radio Protocol Cracking, attempts to address this by reconstructing protocols rather than matching against libraries. The claim is that this works against DIY and modified drones. We haven’t independently verified the full scope, but the technical direction addresses a real gap in conventional RF detection.

Deployment considerations

RF detection is typically the most accessible entry point for counter-drone capability. Handheld detectors can be carried on patrol. Fixed-site RF systems with multi-antenna arrays and controller triangulation scale to cover larger perimeters depending on coverage area and processing capability.

Installation is relatively simple. You mount antennas with clear line-of-sight to your perimeter, run cables to processing hardware, and connect to your monitoring network. No transmission license required. RF detection is passive.

For sites where a single sensor is all the budget allows, RF is the usual starting point. Just understand what you’re getting: a system that detects most commercial drones flown by people who aren’t trying hard to evade you.

Radar

How it works

Radar sends out radio pulses and measures the return. By analyzing the reflected signal, it can determine direction, distance, and velocity of objects in its coverage area.

Standard air traffic radar is built for large, metal aircraft. A typical passenger jet has a radar cross-section of 10-100 square meters. A DJI Mavic 4 has a cross-section of roughly 0.02 square meters, smaller than a baseball. Conventional radar filters objects this small as noise.

Counter-drone radar is different. It’s optimized for small, slow targets, often using higher frequencies (X-band or Ku-band) and advanced processing to detect drone-sized objects. Micro-Doppler processing analyzes the frequency shift from spinning rotors, helping distinguish drones from birds.

Detection range and coverage

A well-specified counter-drone radar detects small UAVs at 3-10 km, depending on the radar design and environmental factors. Unlike RF, radar doesn’t depend on the drone transmitting. It sees anything with mass and velocity in its coverage volume.

The coverage geometry matters. A 2D radar provides azimuth and range but not elevation. You know something is at bearing 270 degrees and 2 km out, but not how high. A 3D radar adds elevation, giving you full position. For sites where altitude matters, airports, for example, 3D is worth the premium.

The thing radar doesn’t give you: identification. A radar track says ‘small, slow airborne object at position X, Y, Z.’ It doesn’t tell you whether that’s a DJI Matrice, a homemade quadcopter, or a large bird. You need a second sensor, usually optical, to confirm what the radar found.

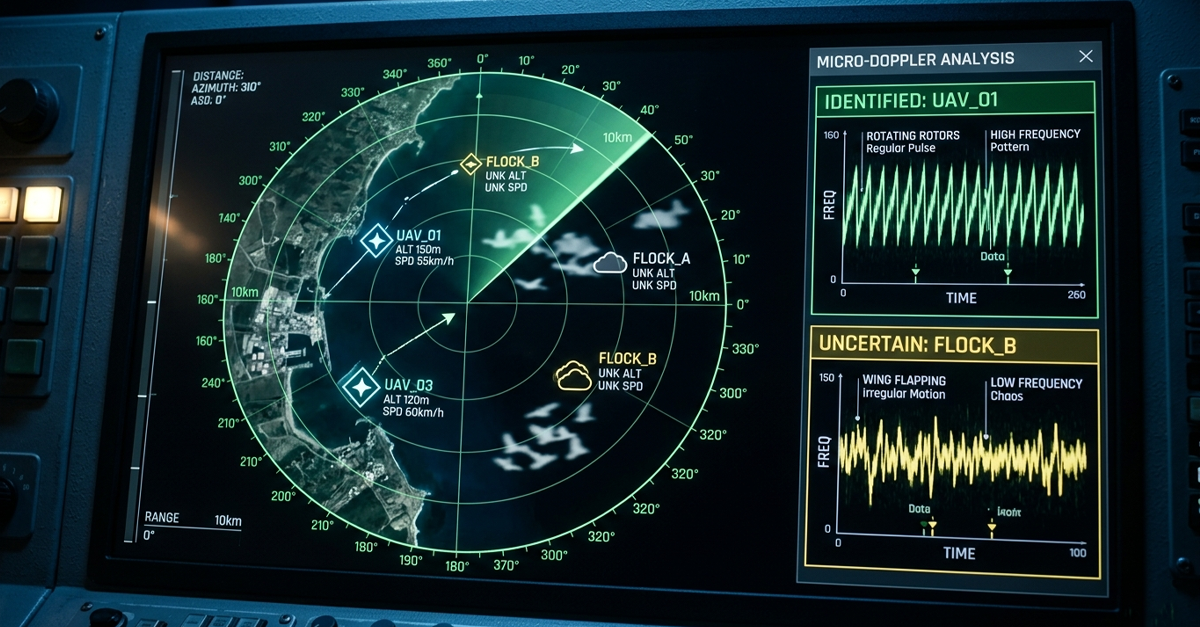

The bird problem

Birds and small drones have similar radar signatures. A flock of pigeons can generate dozens of tracks. Without good classification processing, your operators get alerts every time birds cross your perimeter.

Modern counter-drone radar uses micro-Doppler analysis to differentiate. The rotor signature of a drone creates a different frequency pattern than bird wingbeats. It’s not perfect. A hovering drone has a minimal micro-Doppler signature, and large birds can be misclassified. But it reduces false positives significantly compared to unprocessed radar.

If you’re evaluating radar, ask for the bird classification rate in the vendor’s test data. A 90% classification accuracy sounds good until you realize that 10% of bird tracks still generate alerts. At a site near a wildlife area, that adds up.

Deployment considerations

Radar represents a larger investment than RF. Installation requires a clear line of sight, a stable mounting platform, and power. Most radar also requires a transmission license, which adds regulatory overhead in some jurisdictions.

For fixed sites with a real budget, airports, power plants, and military installations, radar is worth it. The ability to detect autonomous drones, see beyond line of sight, and track multiple targets simultaneously justifies the investment if the threat model includes coordinated or evasive incursions.

For smaller budgets or mobile applications, radar may be more capabilities than the site requires. A sports stadium that hosts 20 events per year probably doesn’t need a full radar installation. An air base that operates 24/7/365 absolutely does.

Optical sensors (EO/IR)

How they work

Optical sensors use cameras, visible light, infrared, and thermal to detect and identify drones. Electro-optical (EO) cameras capture visible light. Infrared (IR) cameras capture heat signatures. Together, they provide positive identification: you can see the drone, confirm the model, and potentially identify any payload.

The limitation is the detection range and the field of view. A high-resolution zoom camera can identify a drone at 2-3 km, but only if it’s pointed in the correct direction. The narrower the field of view, the longer the range, and the smaller the area you’re actually monitoring.

Detection vs confirmation

Here’s where optical sensors fit in most architectures: they’re confirmation, not primary detection. A radar or RF system alerts on a potential drone at a specific location. The optical system slews to that bearing and zooms in. A human operator or AI processing confirms: yes, that’s a drone, and here’s the model.

Using optical sensors for primary detection is technically possible but practically difficult. You’d need multiple cameras covering 360 degrees, and you’d need software capable of scanning for small, fast-moving targets. The processing load is significant, and the false-alarm rate is higher than that of radar.

LZ TECH’s VAR300 is positioned as active optical detection, a system that scans for drones without needing an external cue. The technology exists. Whether it’s the right fit compared to radar-plus-optical depends on your threat model and budget.

Night and weather performance

Visible-light cameras work poorly at night. Thermal cameras work better; a drone’s motors and battery generate heat, but resolution is lower, and range drops. Fog, haze, and precipitation degrade both.

For 24-hour coverage, you need thermal as well as optical. That increases system complexity. A thermal camera with the resolution to identify drone models at a distance requires a significant investment. Add visible-light capability and a gimbal mount, and the per-position setup becomes one of the more expensive elements in a layered architecture.

The forensic value

Optical sensors provide something radar and RF can’t: evidence. A video recording of a drone crossing your perimeter is usable in prosecution in a way that a radar track isn’t. If you’re in a jurisdiction where legal action against drone operators is realistic, optical coverage matters for more than detection.

The LZ TECH T100 is the PTZ tracker designed for exactly this. 6.1 mm to 561 mm focal length range. Auto-tracking once a target is identified. Recording as evidence for after-action review.

Side-by-side comparison

How to choose for your site

Start with your threat model

Every procurement decision starts with the same question: what are you actually defending against? The answer drives everything else.

If your primary threat is amateur operators, tourists flying DJI near your perimeter, hobbyists who don’t know better, RF detection is probably sufficient. These operators use stock equipment, transmit continuously, and aren’t trying to evade you. A well-specified RF system plus training gives you solid coverage.

If your threat model includes sophisticated operators, people who know you have counter-drone capability and are trying to get past it, you need more. Autonomous flight, modified protocols, and deliberate evasion all degrade RF effectiveness. Radar becomes necessary.

If your site has legal exposure, meaning prosecuting drone operators is realistic and useful, optical coverage matters for evidence collection. If prosecution isn’t on the table, optical is lower priority.

Layer for what matters

Most sites end up with layered coverage. RF as the primary detection layer. Radar to catch autonomous drones. Optical for confirmation and evidence. The question isn’t which single sensor to buy. It’s how much coverage you can afford and where to prioritize.

For fixed sites with real budgets: start with RF, add radar, confirm with optical. That’s the standard architecture, and it works for most threat models.

For limited budgets: RF first. Add radar if autonomous drones are a documented concern. Add optical if legal action against operators is realistic.

For mobile or temporary coverage: handheld RF detectors plus a portable camera system. The LZ TECH H3 Pro plus T100 gives you detection and confirmation in a package that fits in a vehicle.

The integration challenge

Buying sensors is easy. Making them work together isn’t. Each sensor generates alerts. Each alert needs to be correlated with alerts from other sensors. A drone that appears on radar at bearing 270 degrees and 2 km needs to match with the RF detection of a DJI Mavic at the same position, and the optical track that confirms the model.

That correlation happens in C2 software. If your C2 system can’t fuse the data, your operators are manually matching tracks. They’ll miss things under stress.

Before you buy sensors, evaluate the C2 layer. Can it ingest data from multiple vendor types? Does it support standard protocols like SAPIENT? Does it correlate tracks automatically, or does it just display three different alert streams?

The best sensor architecture in the world is useless if your C2 layer can’t make sense of the output.

A real example: airport perimeter protection

Let’s walk through how this works in practice. Say you’re protecting a regional airport, maybe 20 commercial flights per day plus general aviation. The budget is limited. You can’t afford a military-grade installation.

Your threat model: mostly amateur operators flying consumer drones near the approach path, with occasional sophisticated incursions that need detection and response.

Here’s how we’d spec it, starting from scratch.

Layer 1, RF detection. Fixed-site RF system covering the approach paths. 2-3 antenna positions with a clear line of sight. This catches 80-90% of your likely incursions, the hobbyists and tourists.

Layer 2, Radar. Single 3D radar positioned to cover the primary approach corridor. This catches autonomous flights and anything using modified protocols.

Layer 3, Optical. Two PTZ camera positions, one at each runway end. These confirm tracks and provide evidence for prosecution.

Start with RF and add layers as incidents prove the need. The architecture supports expansion.

What you don’t do: buy a single radar and expect it to solve everything. Or buy RF and get surprised when autonomous drones fly through. The threat model dictates the architecture, not the other way around.

The bottom line

RF detection is the entry point. It’s cost-effective, easy to deploy, and catches most amateur incursions. It doesn’t catch autonomous drones or sophisticated operators who know you’re listening.

Radar is for sites with real threat exposure. It sees everything in its coverage volume: autonomous, modified, or deliberately evasive. It requires a larger investment and regulatory approval, but it closes the biggest gap in RF-only coverage.

Optical is confirmation and evidence. It tells you what you’re looking at and records it for later use. It’s not primary detection, range and field of view are too limited, but it’s essential for prosecution and forensics.

The right answer is almost always layered. Start with RF, add radar when your threat model demands it, and overlay optical for confirmation. Match the technology to the actual threat, not to marketing claims about capabilities you’ll never use.

And evaluate the C2 layer as carefully as you evaluate sensors. A good integration layer with modest sensors outperforms great sensors with a C2 system that can’t correlate the data.
